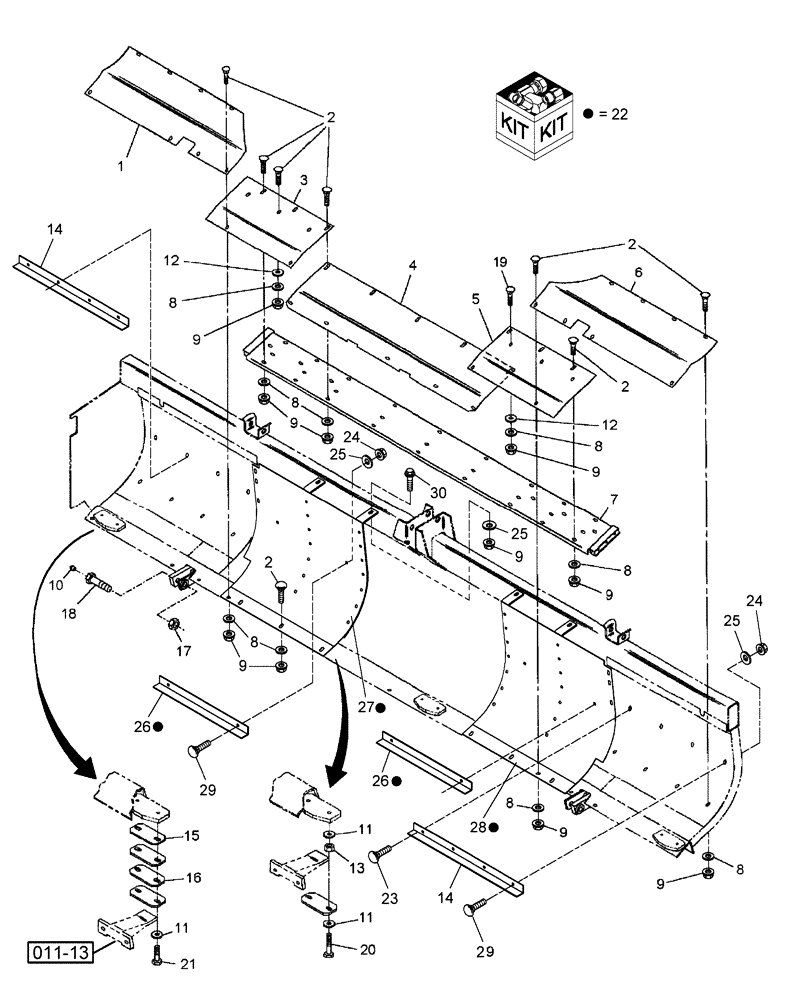

Запчасти Case IH RDX161 (001) - FLOOR, & HEADER CLOSURE KIT (58) - ATTACHMENTS/HEADERS

1

86617589

PLATE

RH

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

32шт.

3

86617705

PLATE

RH

1шт.

4

86633265

PLATE

Center

1шт.

5

86633263

PLATE

LH

1шт.

6

86617592

PLATE

LH

1шт.

7

86633267

PLATE

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

38шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

38шт.

10

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

4шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

12

495-21056

WASHER,1/2"

6шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

86632465

ANGLE

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

16

86633268

SHIM

1шт.

17

86557260

SPECIAL NUT

Lock, 3/4"-10

8шт.

18

86571960

BOLT

Cutterbar Mounting

8шт.

19

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

20

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

4шт.

21

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

4шт.

22

716539016

ATTACHMENT

Kit, Header Closure; Includes Parts As Indicated & Hardware

1шт.

23

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

24

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

26

86633368

ANGLE

2шт.

27

86633372

FLOOR

Extension

1шт.

28

86633370

FLOOR

Extension

1шт.

29

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.
