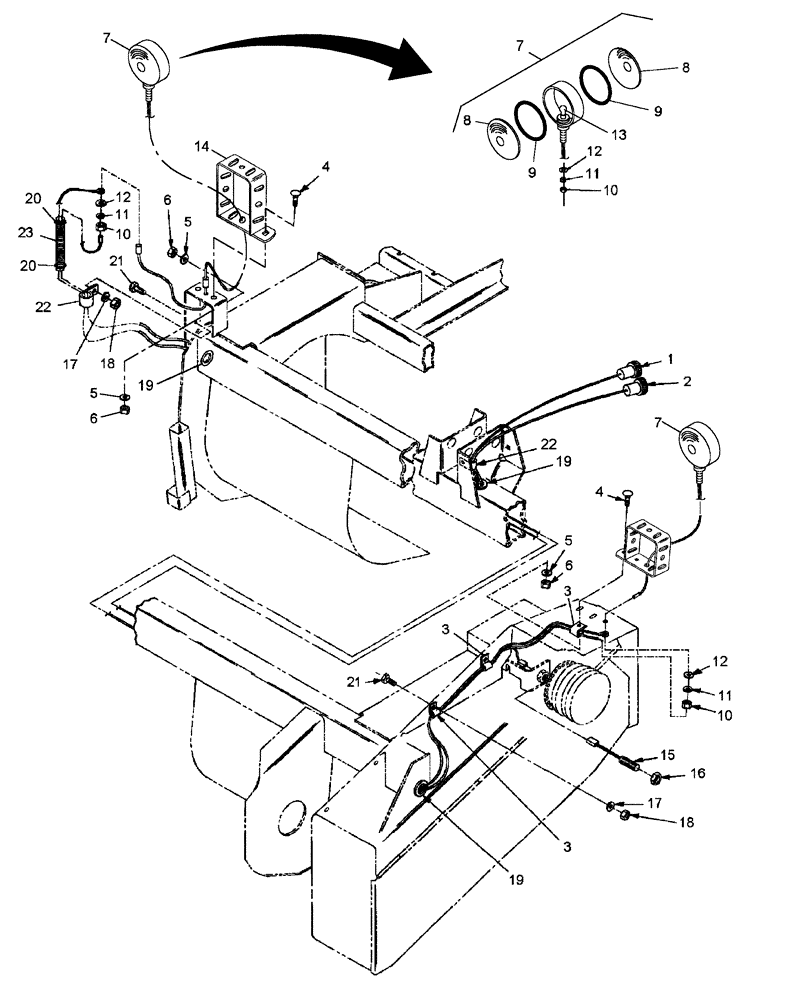

Запчасти Case IH RDX161 (019[1]) - ELECTRICAL W/WDX1701 (55) - ELECTRICAL SYSTEMS

1

86547500

WIRE HARNESS

Flashing Lights

1шт.

2

86531286

WIRE HARNESS

Speed Sensor

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

7

86621618

WARNING LIGHT

Amber, Includes: Ref. 8 - 13

2шт.

8

86622240

LENS

Amber

4шт.

9

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

10

425-118

NUT,1/2"-20, G5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

495-21056

WASHER,1/2"

2шт.

13

A41264

BULB,#1156, 12V

2шт.

14

86631193

BRACKET

2шт.

15

9825943

SENSOR

Magnetic, Header Speed

1шт.

16

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

19

237915

GROMMET

3шт.

20

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

21

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

23

86557777

PLASTIC-RUBBER TUBE,0.51" ID x 9.00" L

1шт.
