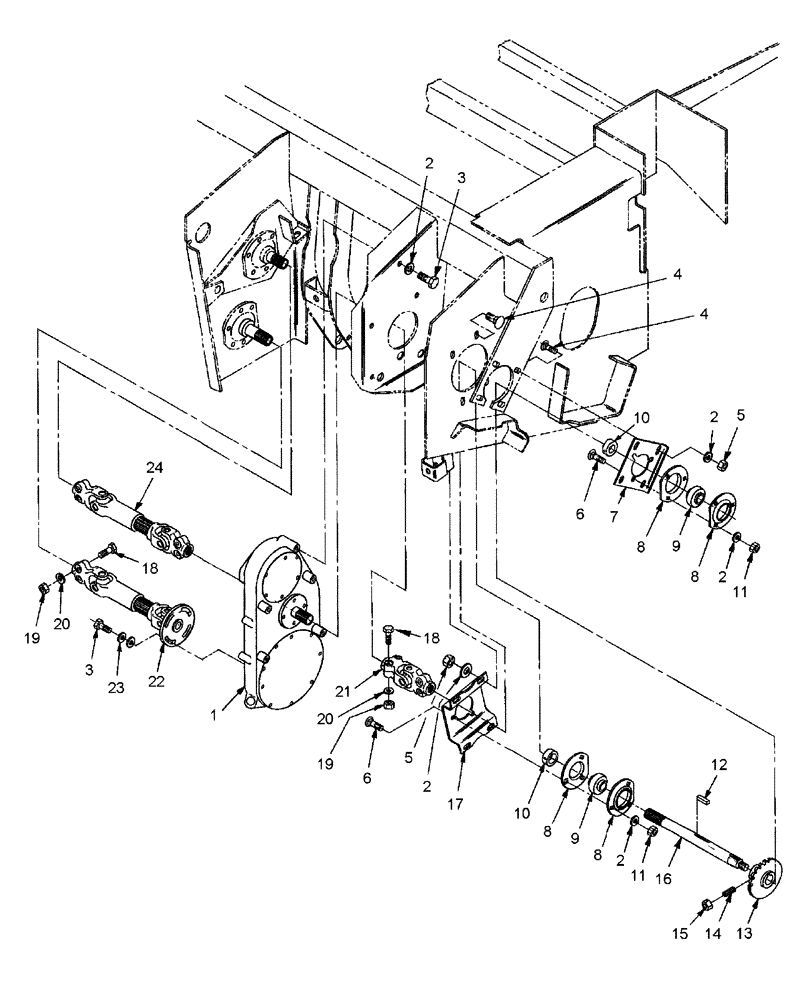

Запчасти Case IH RDX161 (010) - CONDITIONER GEARBOX MOUNTING (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
86603500
GEARBOX
Refer to Fig. 009
1шт.
Prior to PIN HCA0016001
1шт.
1
86603500R
REMAN-GEARBOX
Reman Gearbox
1шт.
1
86603500C
CORE-GEARBOX
Return Number
1шт.
1
87012679
GEARBOX
Use W/ 44cc Motor
1шт.
After PIN HCA0016001
1шт.
1
87012679R
REMAN-GEARBOX
Remanufactured Gearbox
1шт.
1
87012679C
CORE-GEARBOX
Return Number, Gearbox
1шт.
2
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
Belleville, 1/2"
1шт.
3
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
9шт.
4
433-816
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
8шт.
5
425-288
FLANGE NUT,Flg, 1/2"-13, G5
8шт.
6
86521614
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
8шт.
7
86633554
PLATE
1шт.
8
848286
FLANGE
4шт.
9
B92630
BEARING
2шт.
10
45393
COLLAR
2шт.
11
425-288
FLANGE NUT,Flg, 1/2"-13, G5
8шт.
12
224132
KEY
Square, 5/16" x 2"
1шт.
13
86611314
DRIVING SPROCKET
RC 80
1шт.
14
80435
SET SCREW,Hex Soc, 3/8"-16 x 3/4"
2шт.
15
425-106
NUT,3/8"-16, Cl 5
2шт.
16
86601761
SHAFT
1-3/8" Dia.
1шт.
17
86633555
SHEET
1шт.
18
414-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
1шт.
Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.
1шт.
18
413-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
4шт.
Used with yoke 87018879
1шт.
After PIN HCA0016065
1шт.
19
425-118
NUT,1/2"-20, G5
1шт.
Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.
1шт.
19
425-108
NUT,1/2" - 13, Gr 5
4шт.
Used with yoke 87018879
1шт.
After PIN HCA0016065
1шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
10шт.
21
86508122
YOKE
Refer To Fig. 008
1шт.
Prior to PIN HCA0016065
1шт.
21
87033945
KIT
Includes: Ref. 18, 413-844 (4) & Ref. 19, 425-108 (4); Refer To Fig. 008
1шт.
After PIN HCA0016065
1шт.
22
86595841
PTO
Flanged , Refer to Fig. 008
1шт.
24
86595840
PTO
Refer to Fig. 008
1шт.
Выбрано товаров: 42
