Запчасти Case IH RDX161 (009) - CONDITIONER GEARBOX (14) - MAIN GEARBOX & DRIVE

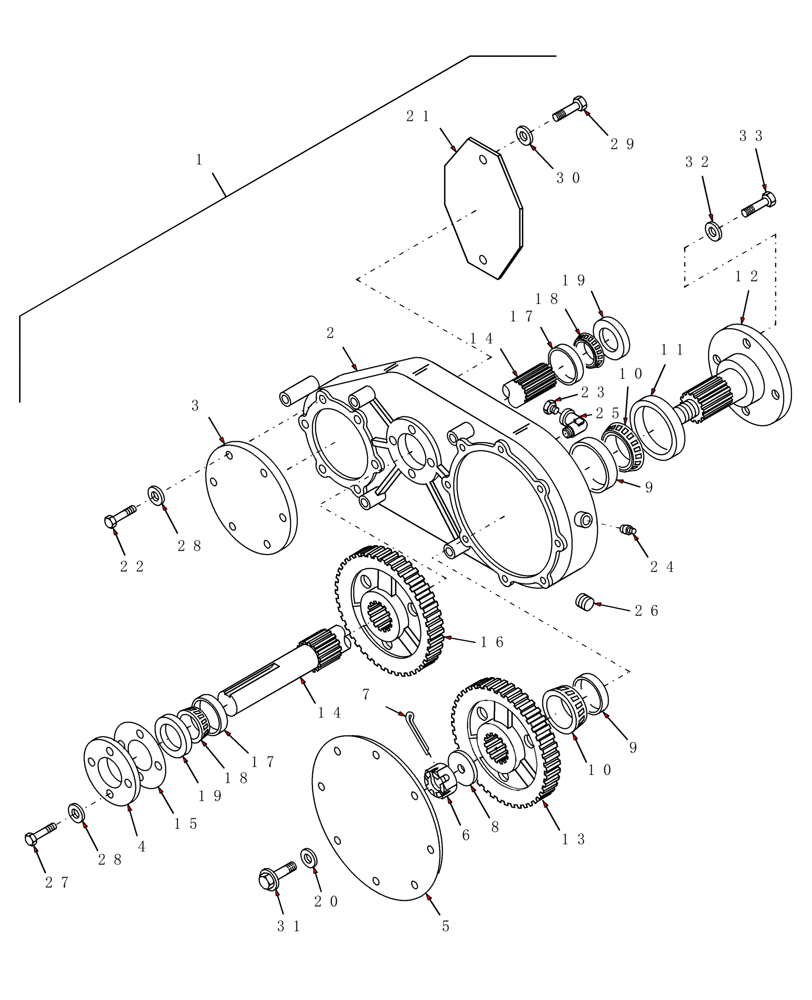

Схема запчастей Case IH RDX161 - (009) - CONDITIONER GEARBOX (14) - MAIN GEARBOX & DRIVE
7
23
20
9
19
30
27
14
32
4
28
33
10
3
8
14
1
25
24
12
2
6
15
17
28
9
10
19
16
21
31
13
22
17
11
18
5
29
18
26

Артикул

Название

Примечание

Количество

1

86603500

GEARBOX

Includes: Ref's 2 - 33, Use w/ 46cc Motor

1шт.

Prior to PIN HCA0016001

1шт.

1

86603500R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

86603500C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

87012679

GEARBOX

Includes: Ref's 2 - 33, Use w/ 44cc Motor

1шт.

1

87012679R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

87012679C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

87567912

GEARBOX

Includes: Ref's 2 - 33, Use w/ 44cc Motor

1шт.

Replaces 87012679

1шт.

1

87567912R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

87567912C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

86534143

COVER

1шт.

Prior to PIN HCA0016001

1шт.

3

87013725

COVER

1шт.

After PIN HCA0016001

1шт.

4

247491

COVER

1шт.

5

86540376

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

8

56867

WASHER

Heat Treated

1шт.

9

H433209

BEARING CUP

2шт.

10

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

86603495

DRIVING GEAR

48T

1шт.

Services 87012679 & 86603500

1шт.

13

87051773

GEAR,48T External, 23T Spline

48T

1шт.

Services 87567912

1шт.

14

86555379

SHAFT

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

15

86617096

SHIM

0.018"

1шт.

16

86603249

GEAR

48T, Forged

1шт.

Services 87012679

1шт.

16

87051765

GEAR,48T External, 23T Spline

48T

1шт.

Services 87567912

1шт.

17

651817R1

BEARING CUP

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

19

701519

OIL SEAL

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

86632445

COVER

1шт.

22

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

23

572820

BREATHER

1шт.

24

217-511

PLUG,Sq Hd, 3/8"-18

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

27

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

Выбрано товаров: 55
