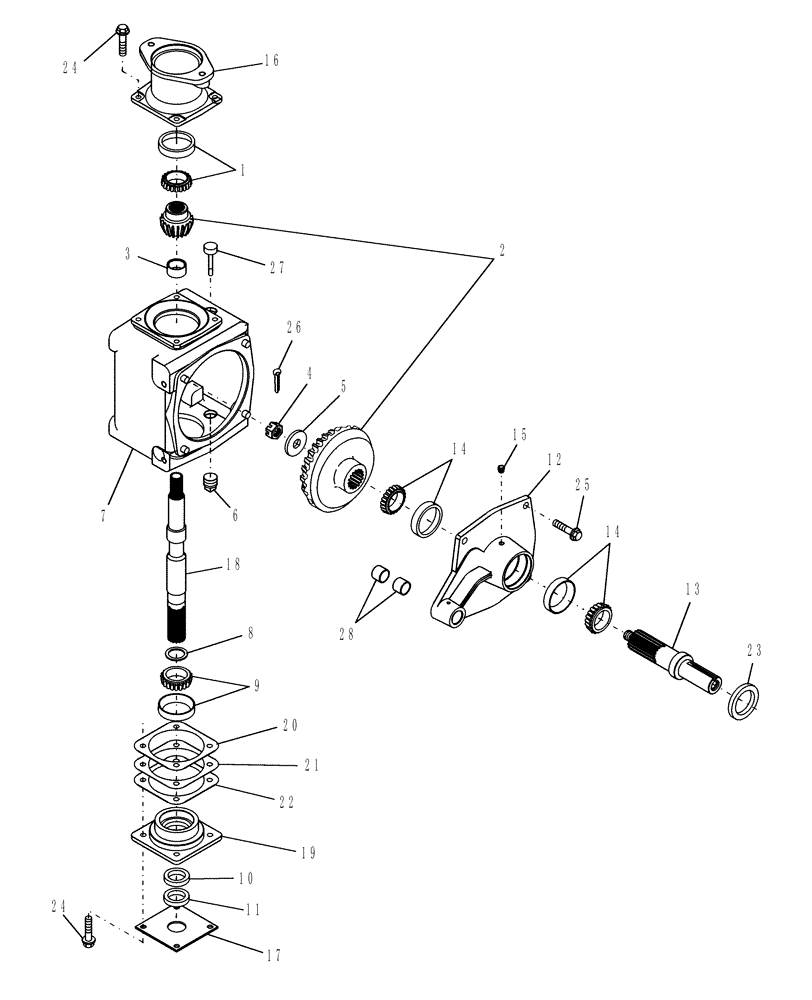

Запчасти Case IH RDX161 (006[2]) - GEARBOX, BELT DRIVE, AFTER PIN HCA0016065 (14) - MAIN GEARBOX & DRIVE

87054841

GEARBOX ASSY

Includes: Ref. 1 - 28

1шт.

Can be used to service Prior to PIN heads if cutterbar driveshaft yoke is replaced with 86623800

1шт.

Prior To PIN HCA0016501

1шт.

87582682

GEARBOX

Gearbox; Includes: Ref. 1 - 28

1шт.

From PIN HCA0016501

1шт.

87582682R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

87582682C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

G15215

ROLLER BEARING

1шт.

2

87054843

GEAR SET

1шт.

3

86532586

SLEEVE

1шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

5

86516694

WASHER

Hard, 3/4"

1шт.

6

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

7

NSS

NOT SOLD SEPARAT

Gearbox Case

1шт.

8

100-16137

SNAP RING,#137. Ext

1шт.

9

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

1шт.

10

634036

OIL SEAL

1шт.

11

84138975

HUB

1шт.

Component of antiwrap kit 87030620

1шт.

12

86632441

COVER

Includes: Ref. 28

1шт.

13

86532585

SHAFT

L = 11-1/2"

1шт.

Used In Gearbox 87054841

1шт.

13

87541435

GEAR SHAFT

L = 11-1/2"

1шт.

Used In Gearbox 87582682

1шт.

14

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

& Cup

2шт.

15

572820

BREATHER

1шт.

16

86640567

CAP COVER

1шт.

17

87028086

SHIELD

1шт.

Component of antiwrap kit 87030620

1шт.

18

86532584

SHAFT

16-3/8" L

1шт.

19

87022171

HUB

Cap

1шт.

Component of antiwrap kit 87030620

1шт.

20

86501593

SHIM

.002"

1шт.

21

86501594

SHIM

.010"

1шт.

22

86501595

SHIM

.003"

1шт.

23

189602

SEAL,53.98mm ID x 76.38mm OD x 9.53mm Thk

3" ID

1шт.

24

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

8шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

26

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

27

86564382

DIPSTICK

1шт.

28

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.
