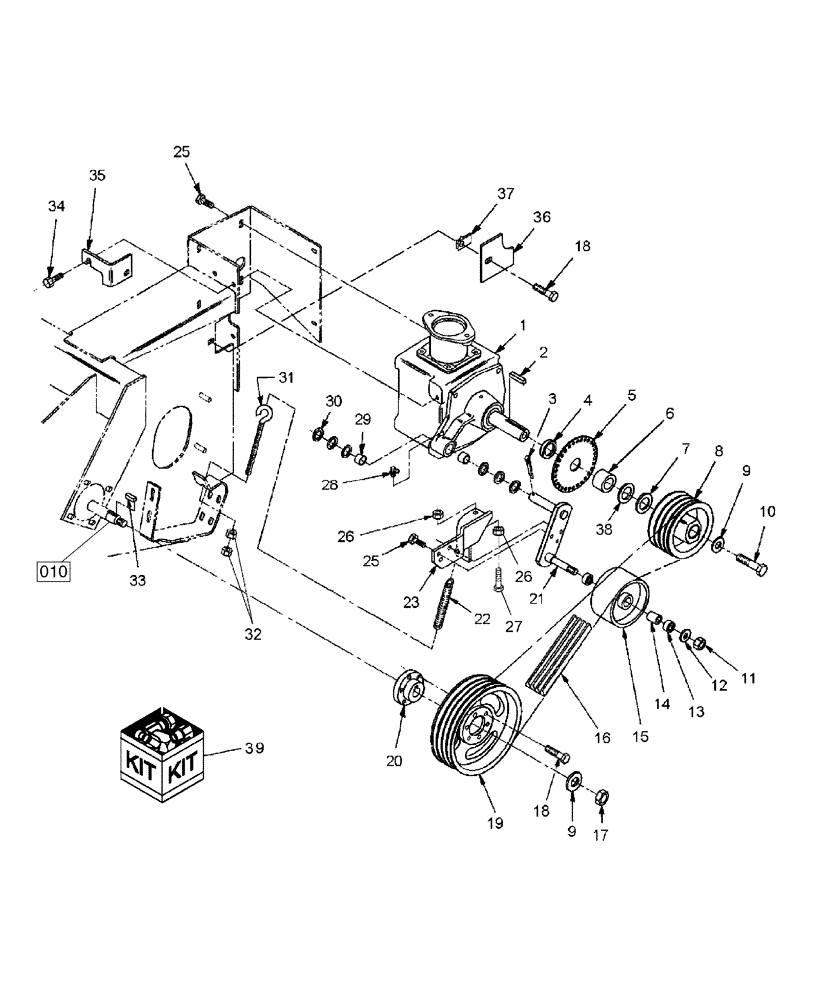

Запчасти Case IH RDX161 (005) - BELT DRIVE (14) - MAIN GEARBOX & DRIVE

1

86633552

GEARBOX

Refer to Component Breakdown, Fig. 006[1]

1шт.

Prior to PIN HCA0016065

1шт.

1

87054841

GEARBOX ASSY

Refer to Component Breakdown, Fig. 006[2]

1шт.

Can be used to service Prior To PIN heads if cutterbar driveshaft yoke is replaced with 86623800 or kit 87030620

1шт.

Btwn PIN HCA0016065 & HCA0016501

1шт.

1

87582682

GEARBOX

Gearbox; Refer to Component Breakdown, Fig. 006[2]

1шт.

From PIN HCA0016501

1шт.

1

87582682R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

87582682C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

224132

KEY

Square, 5/16"x 2"

1шт.

3

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

4

86510186

SPACER

3.85 mm ID x 53.98 mm OD

1шт.

5

86540071

DISC

1шт.

6

604398

HUB

1-9/16" ID x 2-1/4" OD x 1-1/2" L

1шт.

7

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

Flat, 1-17/32" ID x 2-3/8" OD, 10 GA.

2шт.

8

86632264

PULLEY

7" OD

1шт.

Prior to PIN HCA0016065

1шт.

8

86582701

SHEAVE

9" OD

1шт.

Btwn PIN HCA0016065 & HCA0016501

1шт.

8

87526445

SHEAVE

9" OD

1шт.

From PIN HCA0016501

1шт.

9

86516694

WASHER

Flat, 3/4" ID x 1/4" thk

2шт.

10

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

11

232-41412

LOCK NUT,3/4"-10, GC

1шт.

12

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

1шт.

Prior to PIN HCA0016065

1шт.

12

87021862

WASHER,19.8mm ID x 38.1mm OD x 4.76mm Thk

Hardened, M20, Plated

1шт.

After PIN HCA0016065

1шт.

13

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

14

217994

SPACER

3/4" ID x 1"x 1-1/4" L

1шт.

15

86632727

IDLER

6" OD

1шт.

16

86627792

V-BELT,0.66" W x 97.50" L, 4 Ribs

1шт.

Prior to PIN HCA0016065

1шт.

16

86582818

V-BELT,0.66" W x 101.00" L, 4 Ribs

1шт.

After PIN HCA0016065

1шт.

17

425-1012

NUT,3/4"-10, G5

1шт.

18

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

7шт.

19

86633564

PULLEY

247.7mm OD

1шт.

20

86633563

HUB

1шт.

21

86633561

ARM

1шт.

22

12

SPRING

7/8" OD x 7-1/4" L

1шт.

23

86633565

ARM

1шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

7шт.

26

425-108

NUT,1/2" - 13, Gr 5

1шт.

27

88965

BOLT,Hex, 1/2"-13 x 4", G5, Full Thd

1шт.

28

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

29

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

1" ID x 7/8" L

2шт.

30

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

14шт.

31

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

86626994

KEY

Square, 5/16" x 1"

1шт.

34

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

35

86633562

ANGLE

1шт.

36

86558629

COVER

1шт.

37

86539811

SPRING NUT

Tinnerman, 3/8"-16

1шт.

38

25494

WASHER,38.9mm ID x 50.8mm OD x 1.5mm Thk

1-17/32" ID x 2" OD x 1/16" Thk

1шт.

39

87030620

REPAIR KIT

Antiwrap

1шт.

Not Illustrated

1шт.

Contains parts for top of cutterbar driveshaft to update units prior to PIN HCA0016064 to after PIN

1шт.
