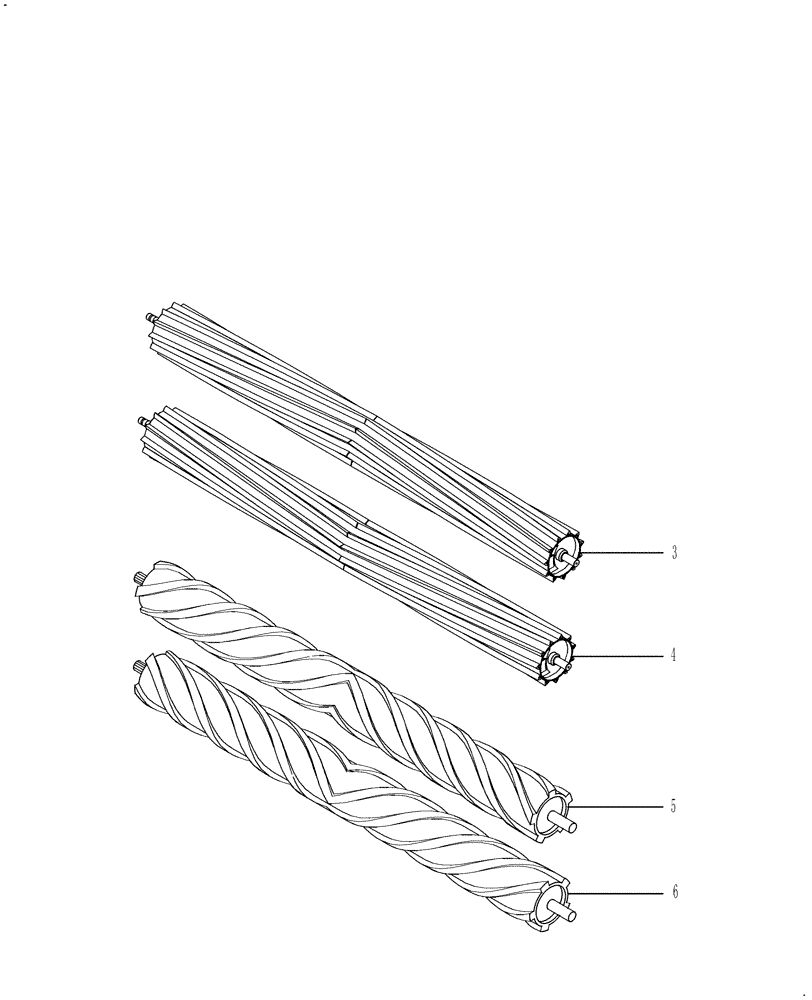

Запчасти Case IH RDX131 (20.15.05[05]) - CONDITIONING ROLLS, CHEVRON (15) - CROP CONDITIONING
![Схема запчастей Case IH RDX131 - (20.15.05[05]) - CONDITIONING ROLLS, CHEVRON (15) - CROP CONDITIONING](https://partsell.ru/storage/images/caseih/484304.png)
4
5
3
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
3
84294055
ROLL
Steel, Chevron, Upper
1шт.
When Converting From Spiral to Chevron, Use Chevron on Top and Bottom
1шт.
Do Not Intermix Steel and Rubber Rolls
1шт.
4
84294053
ROLL
Steel, Chevron, Lower
1шт.
When Converting From Spiral to Chevron, Use Chevron on Top and Bottom
1шт.
Do Not Intermix Steel and Rubber Rolls
1шт.
5
87489875
ROLL
Rubber, Chevron, Upper
1шт.
When Converting From Spiral to Chevron, Use Chevron on Top and Bottom
1шт.
Do Not Intermix Steel and Rubber Rolls
1шт.
6
87490270
ROLL
Rubber, Chevron, Lower
1шт.
When Converting From Spiral to Chevron, Use Chevron on Top and Bottom
1шт.
Do Not Intermix Steel and Rubber Rolls
1шт.
Выбрано товаров: 12
