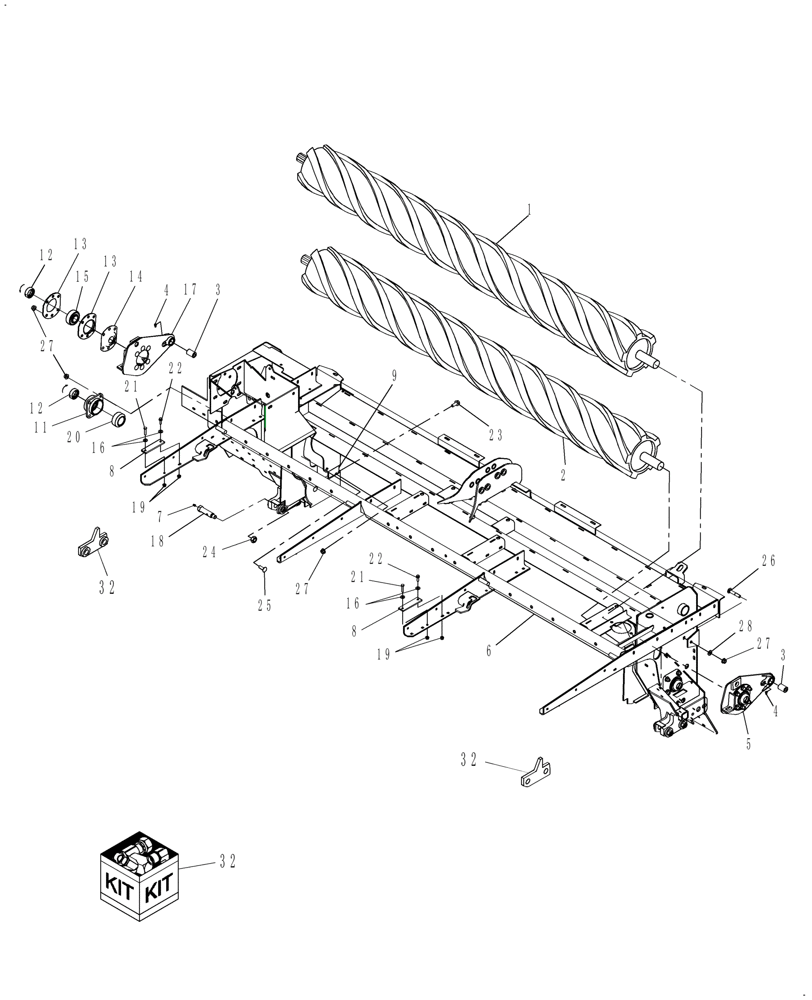

Запчасти Case IH RDX131 (20.15.05[03]) - HEADER FRAME & CONDITIONING ROLLS (15) - CROP CONDITIONING

1

86610941

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

1

86610314

ROLL

Steel, Upper

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

2

86610945

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

2

86610313

ROLL

Steel, Lower

1шт.

DO NOT INTERMIX STEEL AND RUBBER ROLLS

1шт.

3

9849929

SPACER

2шт.

4

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

5

87056485

ARM ASSY.

1шт.

6

87576860

HEADER AUTOMATION KI

Frame, Header

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

849495

RUBBER PAD

4шт.

9

87549208

ANGLE

1шт.

10

Reference Not Used

1шт.

11

86573043

BEARING ASSY

2шт.

12

45393

COLLAR

4шт.

13

189786

FLANGE

4шт.

14

222200

SHROUD

2шт.

15

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

17

87055307

ARM

1шт.

18

86571960

BOLT

Cutterbar Mounting

4шт.

18

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

20

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

2шт.

21

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

22

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

23

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

24

86557260

SPECIAL NUT

4шт.

25

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

26

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

27

86521607

FLANGE NUT,Flg, 1/2"-13, G5

22шт.

28

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

29

86640794

STOP

Hay Wedge

2шт.

Not Illustrated

1шт.

30

86516317

PLOW BOLT,#3, 3/8" - 16 x 1", Gr 5

4шт.

Not Illustrated

1шт.

31

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

Not Illustrated

1шт.

32

86565127

KIT

Cutterbar Support, [1] LH & [1] RH

1шт.
