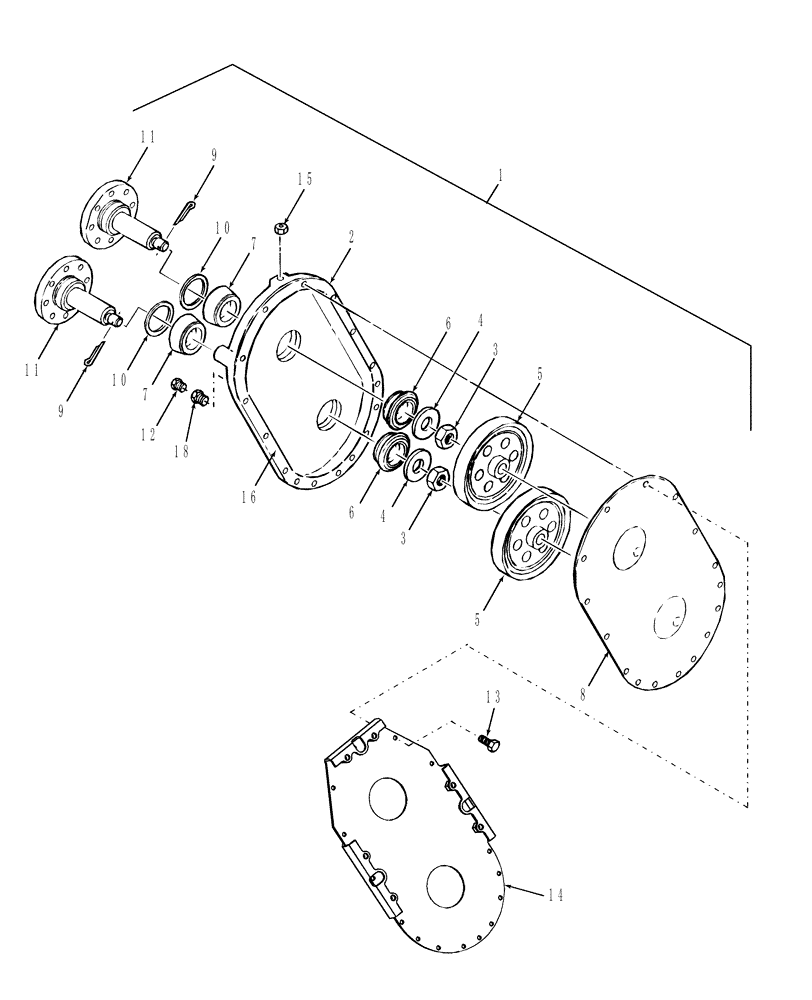

Запчасти Case IH RDX131 (20.15.04[03]) - GEARBOX, CONDITIONER (15) - CROP CONDITIONING

1

87515809

GEARBOX ASSY

Includes: Ref. 2 - 17

1шт.

1

87515809R

REMAN-GEARBOX

Reman Gearbox, RDX131 Disc Header 9/06 - 11/07

1шт.

1

87515809C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

2шт.

4

56867

WASHER

2шт.

5

86602359

GEAR

Spur

2шт.

6

H433209

BEARING CUP

4шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

4шт.

8

9847741

COVER

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

10

694956

SEAL

2шт.

11

9847669

SHAFT

2шт.

12

572820

BREATHER

1шт.

13

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

14

87515569

SUPPORT

1шт.

15

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

3шт.

16

ZPX81158

ADHESIVE

1шт.

Apply Between Housing & Cover. Bead Must Be Continuous & Inside Bolt Pattern

1шт.

17

Reference Not Used

1шт.

18

87520047

REDUCER FITTING

Plug

1шт.
