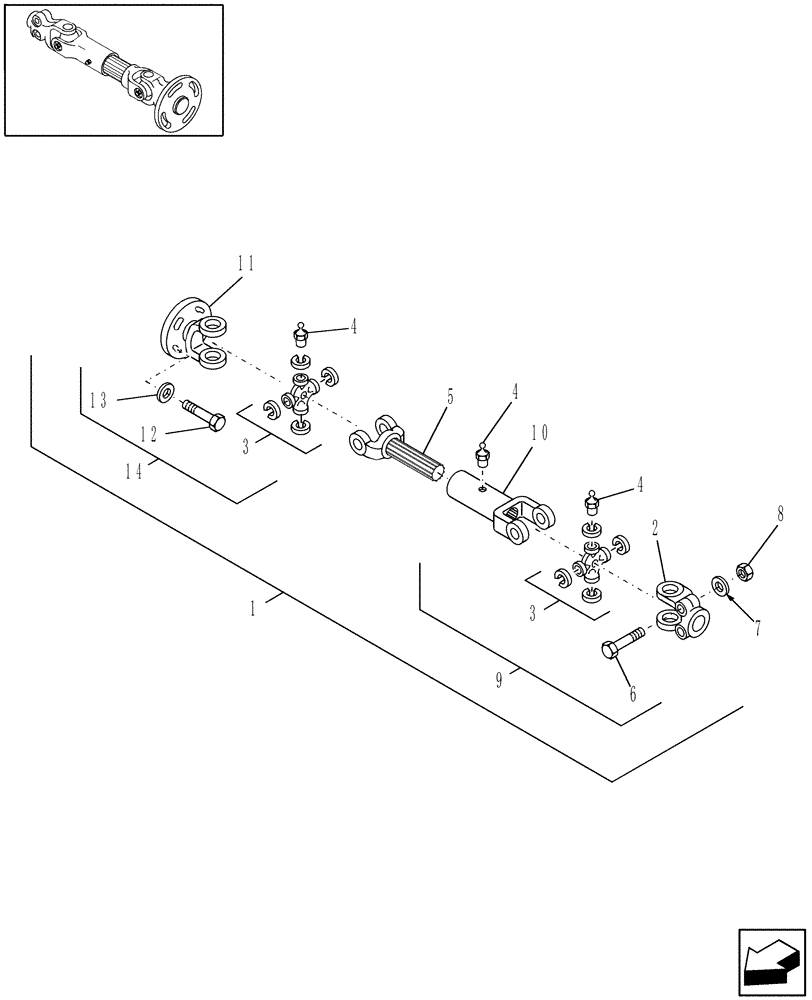

Запчасти Case IH RDX131 (20.15.03[03]) - CONDITIONER DRIVE SHAFTS (15) - CROP CONDITIONING

1

86595841

PTO

Includes: 2, 3, 5, 9, 10, 11, & 14

2шт.

2

86507085

YOKE

2шт.

3

9847253

BEARING ASSY

Includes: Ref. 4

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

6шт.

5

86571226

YOKE

2шт.

6

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

9

86571224

PTO

Includes: Ref. 2, 3, 4 & 10

2шт.

10

86571225

YOKE

Slip, Includes: Ref. 4

2шт.

11

86533168

YOKE

Flange

2шт.

12

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

13

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

14

86571223

PTO

2шт.
