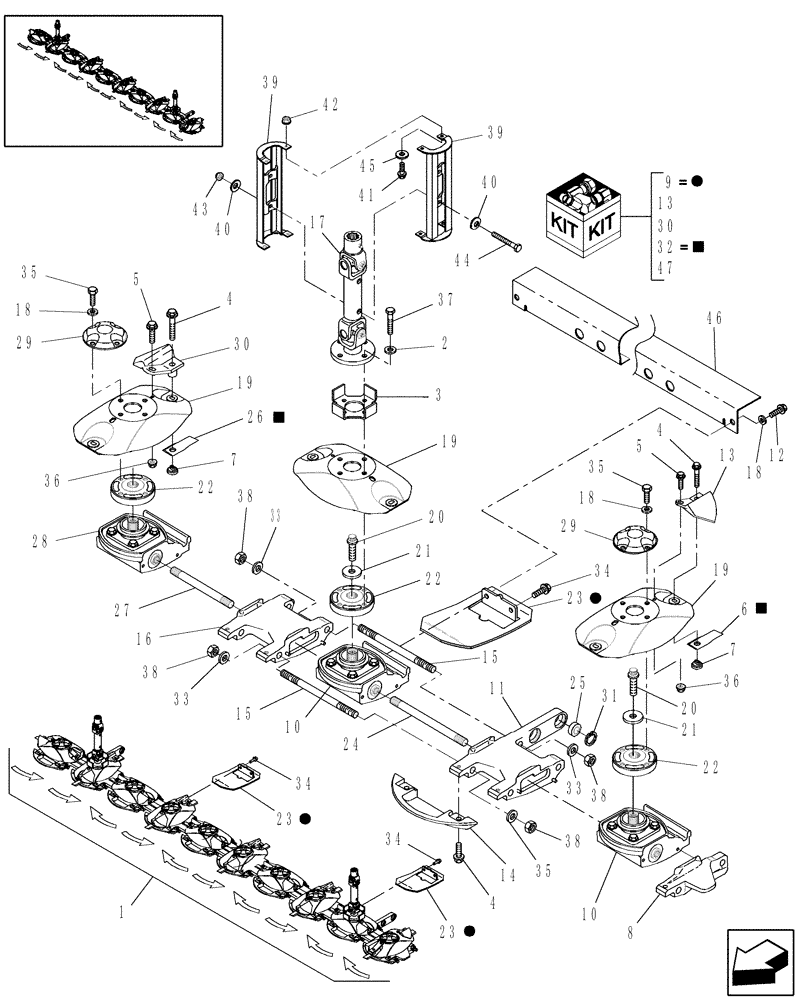

Запчасти Case IH RDX131 (20.14.03[03]) - CUTTERBAR, 10 DISC, NON SHOCK HUBS (14) - CROP CUTTING

1

87039899

CUTTERBAR

Complete, Original Non Shock Hubs [Ref 22]

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

3

86629689

DISC

2шт.

4

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

40шт.

5

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

20шт.

6

9847683

BLADE,Knife CW

CW, 7° Twist

10шт.

6

86621872

BLADE

CW, 14° Twist

10шт.

7

87725066

NUT

20шт.

8

86522103

ARM

LH

1шт.

8

86517530

ARM

RH

1шт.

Not Shown

1шт.

9

715289026

DIA KIT, HARVESTER

Kit, High Stub - Includes: (8) Ref. 23, High Skid Shoes, & Instructions

1шт.

10

0C

ORDER COMPONENTS

Module, CW; Refer To Component Breakdown, Fig. 20.14.05[02]

5шт.

11

87057898

ARM ASSY.

LH

1шт.

11

87057901

ARM ASSY.

RH

1шт.

Not Shown

1шт.

12

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

4шт.

13

87040838

KIT

Lifter, CW, Includes: (2) Lifters, Hardware & Instructions

5шт.

14

87044117

STONEGUARD

10шт.

15

86501934

THREADED ROD

20шт.

16

87044107

SPACER

7шт.

17

87056089

PTO SHAFT

Driveline, LH; Refer To Component Breakdown, Fig. 20.14.04[03]

1шт.

17

87388046

PTO SHAFT

Driveline, RH; Refer To Component Breakdown, Fig. 20.14.04[03]

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

36шт.

19

87342192

DISC

10шт.

20

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

10шт.

21

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

10шт.

22

87044113

HUB ASSY.

10шт.

23

87346922

SKID/SHOE

10шт.

23

87622885

SHOE

Skid, High Stub

10шт.

24

86519039

SHAFT

268mm

2шт.

25

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

26

9847684

BLADE,Knife CCW

CCW, 7° Twist

10шт.

26

86621873

BLADE

CCW, 14° Twist

10шт.

27

86519042

SHAFT

248mm

7шт.

28

0C

ORDER COMPONENTS

Module, CCW; Refer To Component Breakdown, Fig. 20.14.05

5шт.

29

9828165

CAP

8шт.

30

87040839

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions

5шт.

31

271429

SNAP RING,1.625", Int, #162

4шт.

32

86624751

KNIFE SET

Includes (10) Ref. 6, 14° CW Blades, & (10) Ref. 26, 14° CCW Blades

1шт.

32

86624752

KNIFE SET

Includes (16) Ref. 6, 14° CW Blades, & (16) Ref. 26, 14° CCW Blades

1шт.

32

87037027

SET OF BLADES

Includes (16) Ref. 6, 14° CW OS Blades, & (16) Ref. 26, 14° CCW OS Blades

1шт.

33

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

34

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

35

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

36

86544265

FLANGE NUT,Flg, 1/2"-13, G8

20шт.

37

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

38

86518194

NUT,3/4"-10, G8

40шт.

39

87061791

DRUM

LH; Short

2шт.

39

87390432

DRUM

RH; Long

2шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

41

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

42

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

43

88902

NUT,3/8"-16

1шт.

44

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

1шт.

45

80681

LOCK WASHER,5/16"

8шт.

46

87609027

CHANNEL

1шт.

47

87602273

REPAIR KIT

Shock Retrofit For Ref 22, See 20.14.03[04] & 20.14.05[04] Qty For 2 Discs

1шт.
