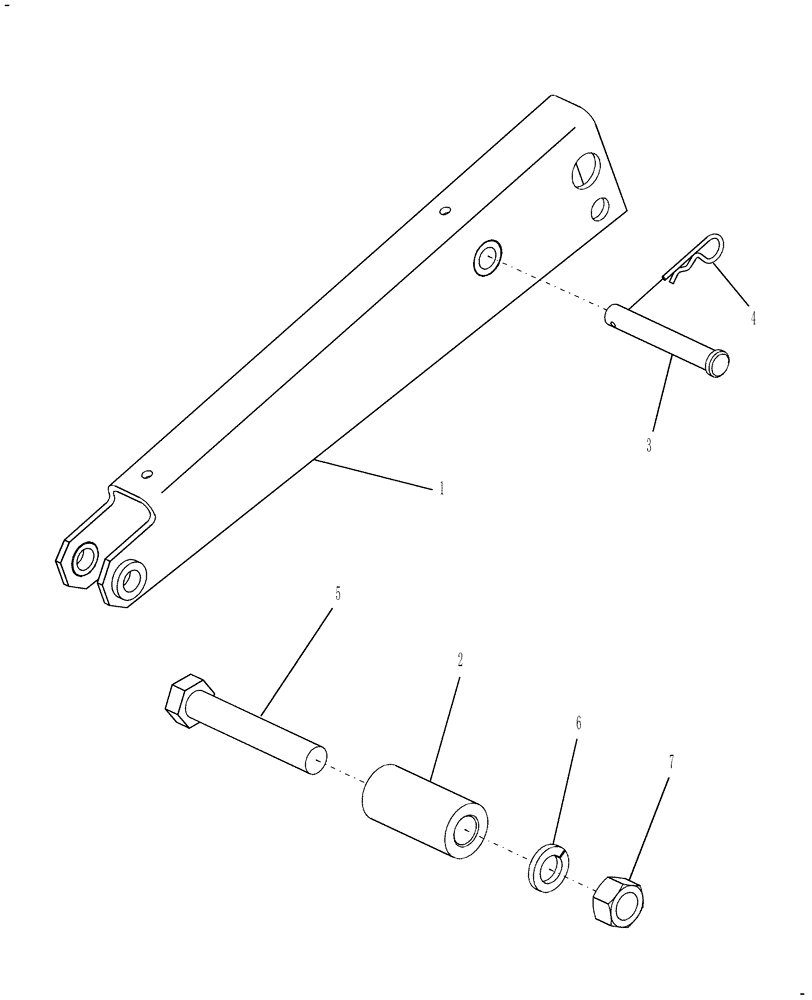

Запчасти Case IH RDX131 (20.08.09[03]) - HEADER ATTACHING GROUP (12) - MAIN FRAME

1

86633313

CHANNEL

1шт.

2

9801108

SPACER

2шт.

3

86529063

PIN

2шт.

4

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

5

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

2шт.

6

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

7

9849633

NUT,1"-8, G5

2шт.
