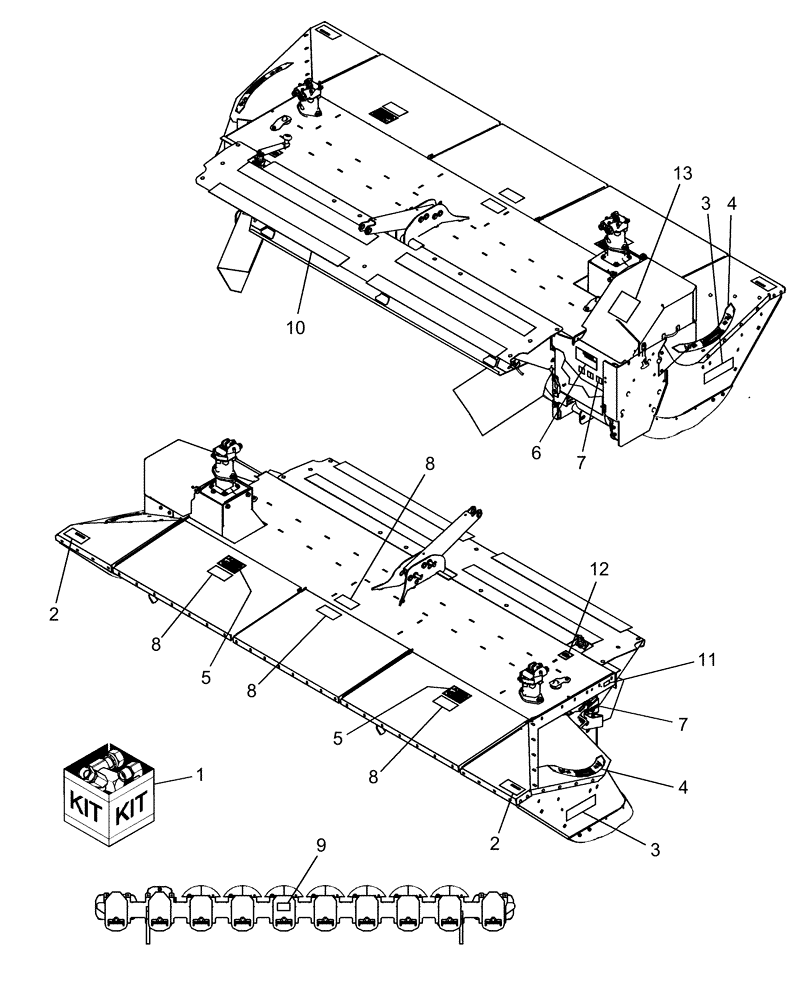

Запчасти Case IH RDX131 (20.08.15[03]) - DECALS (08) - SHEET METAL

1

0C

ORDER COMPONENTS

Kit, Decal Service

1шт.

2

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

2шт.

2

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

2шт.

2

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

2шт.

3

86624776

DECAL

CIH LOGO 100

2шт.

4

80772110

WARNING DECAL

Knife Tip Path - English

2шт.

4

791403

WARNING DECAL

WARNING  - Knife Tip Path - French

2шт.

4

86528619

WARNING DECAL

WARNING  - Knife Tip Path - Spanish

2шт.

5

86628571

WARNING DECAL

Stand Clear - English

2шт.

5

86629518

WARNING DECAL

WARNING - Stand Clear - French

2шт.

5

9804253

DECAL

WARNING - Stand Clear - Spanish

2шт.

6

9826789

DANGER DECAL,180mm x 90mm H

DANGER - Rotating Driveline - English

1шт.

6

9827448

DANGER DECAL

otating Driveline - French

1шт.

6

9801260

DANGER DECAL

DANGER - Rotating Driveline - Spanish

1шт.

7

165109

DECAL

Lube Fitting

12шт.

8

86611825

WARNING DECAL

WARNING - NO STEP - English

4шт.

8

86614084

WARNING DECAL

NO STEP - French

4шт.

8

86528614

DECAL

WARNING - NO STEP - Spanish

4шт.

9

166127

DECAL

ATTENTION - Do Not Use This Member For Lifting - English

1шт.

9

601662

DECAL

ATTENTION - Do Not Use This Member For Lifting - French

1шт.

9

9804246

DECAL

ATTENTION - Do Not Use This Member For Lifting - Spanish

1шт.

10

697468

ANTI-SKID STRIP

4шт.

11

87522

DRIVE SCREW,Rd Hd, #4 x 1/4", U Type

STS U RH #4X.25 86505617

2шт.

12

195096

DECAL

Roll Pressure, English

1шт.

12

601613

DECAL

Roll Pressure, French

1шт.

13

87576433

DECAL

Belt Tension, English

1шт.

13

87580384

DECAL

Belt Tension, French

1шт.

13

87580385

DECAL

Belt Tension, Spanish

1шт.
