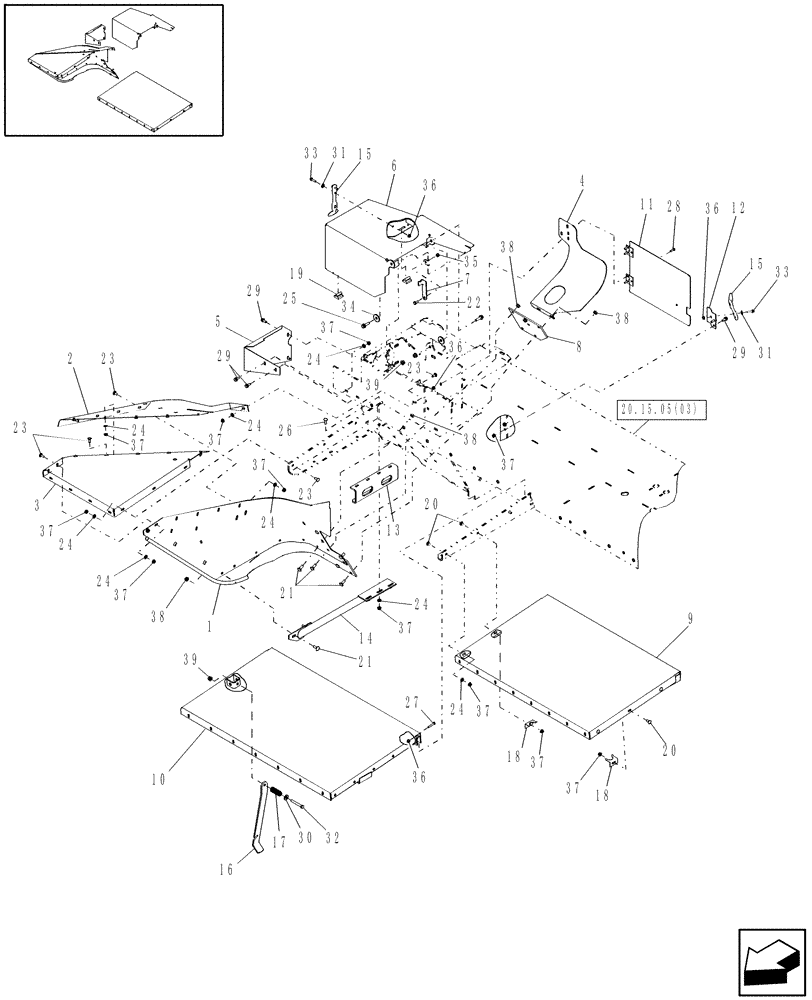

Запчасти Case IH RDX131 (20.08.03[03]) - SHIELDING, RIGHT SIDE (08) - SHEET METAL

1

87535097

SHEET

1шт.

2

87399755

SHEET

1шт.

3

86632224

SUPPORT

1шт.

4

87387380

SHIELD

1шт.

5

87519304

SHIELD

1шт.

6

87522872

SHIELD

1шт.

7

87534014

SUPPORT

1шт.

8

86631739

PLATE

1шт.

9

86626577

COVER

1шт.

10

86626543

HOOD

1шт.

11

87387389

DOOR

1шт.

12

87387392

CLIP

1шт.

13

NS

NOT SERVICED

Bracket, Lift; Used Only For Shipping Purposes

1шт.

14

86632244

PIPE

1шт.

15

86000448

LATCH

2шт.

16

86526613

LATCH

1шт.

17

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

18

86582727

CLIP

2шт.

19

138140

BUMPER

2шт.

20

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

21

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

22

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

23

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

15шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25шт.

25

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

26

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

27

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

28

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

29

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

30

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

31

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

3шт.

32

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

33

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

34

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

35

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

36

9626558

FLANGE NUT,Flg, 1/4"-20

9шт.

37

86521605

FLANGE NUT,5/16"-18, Cl 5

18шт.

38

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

39

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.
