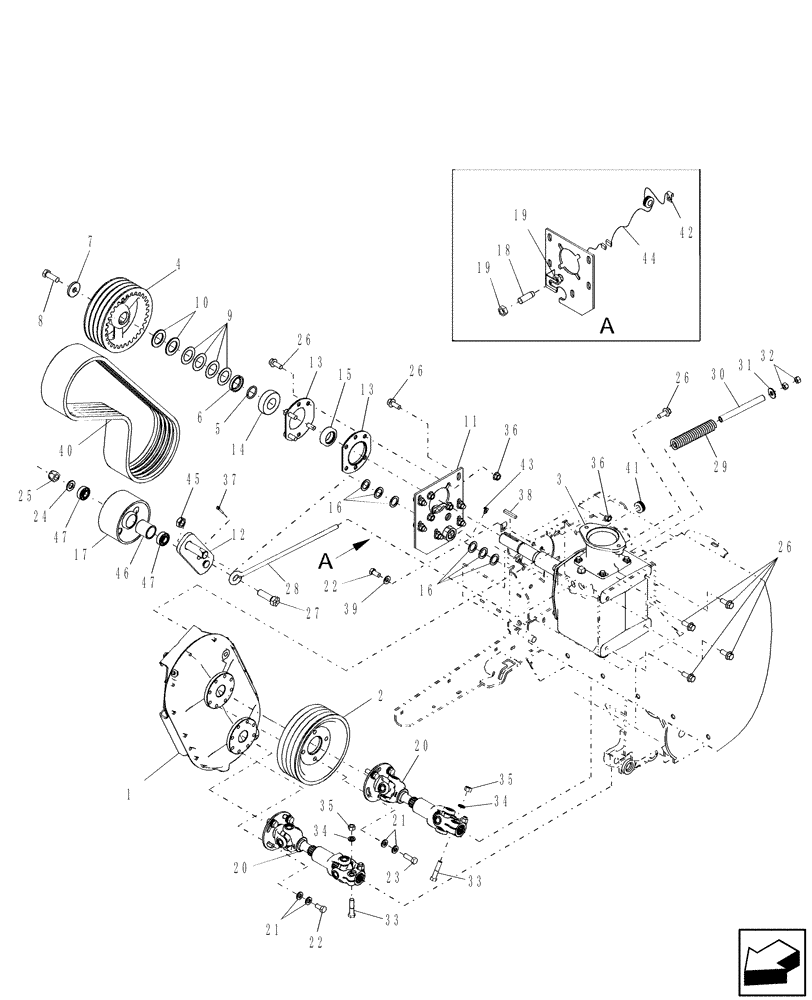

Запчасти Case IH RDX131 (20.14.07[03]) - HEADER DRIVE (03) - MAIN GEARBOX

1

87515809

GEARBOX ASSY

For Component Breakdown, Refer To Fig. 20.15.04[03]

1шт.

1

87515809R

REMAN-GEARBOX

Reman Gearbox, RDX131 Disc Header 9/06 - 11/07

1шт.

1

87515809C

CORE-GEARBOX

Return Number

1шт.

2

87389800

SHEAVE

1шт.

3

87380376

GEARBOX

For Component Breakdown, Refer To Fig. 20.14.08[03]

1шт.

3

87380376R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

3

87380376C

CORE-GEARBOX

Return Number, Gearbox

1шт.

4

87526445

SHEAVE

1шт.

5

626286

SNAP RING

1шт.

6

86510186

SPACER

1шт.

7

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

8

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

9

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4шт.

10

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

2шт.

11

87387822

PLATE

1шт.

12

87387833

ARM ASSY.

1шт.

13

86629969

FLANGE

2шт.

14

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

15

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

1шт.

16

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

6шт.

17

86632727

IDLER

1шт.

18

9825943

SENSOR

1шт.

19

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

20

86595841

PTO

2шт.

21

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

22

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

23

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

24

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

25

9626598

NUT,3/4"-10, GB

1шт.

26

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

15шт.

27

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

28

9860121

EYEBOLT

1шт.

29

64861

SPRING

1шт.

30

87517376

TUBE,19.05 mm OD x 173 mm L

1шт.

31

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

32

9706685

NUT,M12 x 1.75, Cl 8

2шт.

33

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

35

280963

NUT,Nut, 1/2-20 GR 5 ZND

4шт.

36

86521607

FLANGE NUT,Flg, 1/2"-13, G5

10шт.

37

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

38

87485

KEY,50.8mm OAL x 7.96mmThk

1шт.

39

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

40

87542623

V-BELT,3.00" W, 4 Ribs

1шт.

41

138269

GROMMET

1шт.

42

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

43

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

44

87062250

WIRE HARNESS

1шт.

45

84972

JAM NUT,Jam, 3/4"-10, G2

1шт.

46

217994

SPACER

1шт.

47

9807906

BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"

2шт.
