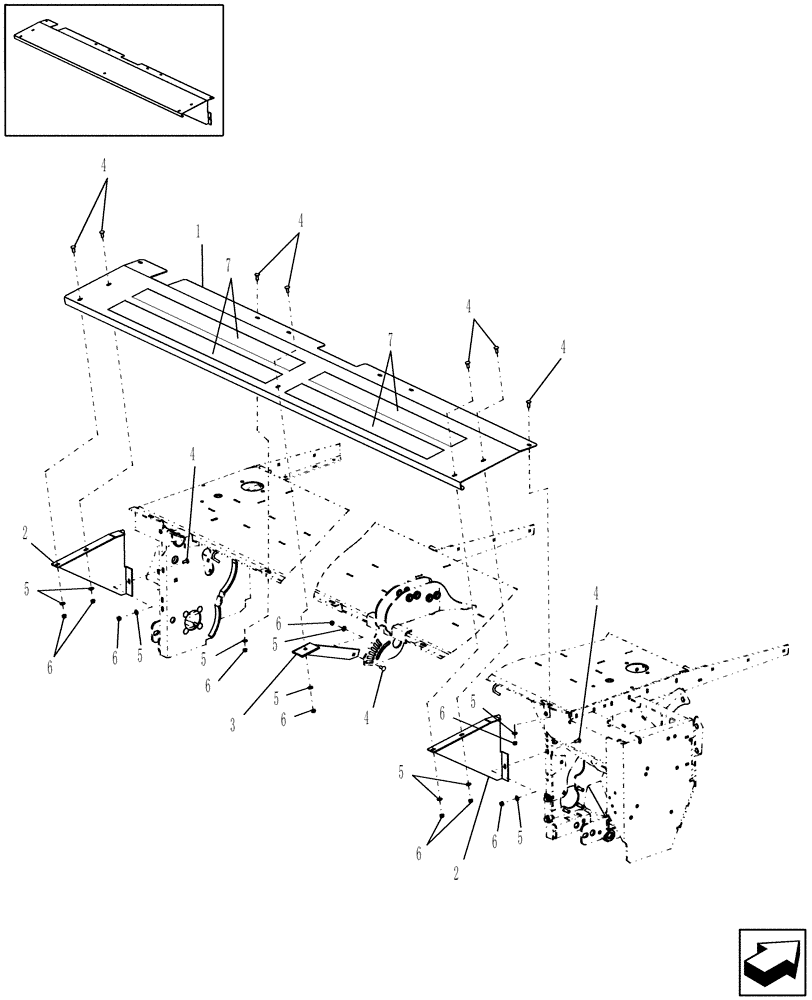

Запчасти Case IH RDX131 (20.08.10) - DECK (00) - GENERAL

1

87515744

LOAD DECK

1шт.

2

87515775

SUPPORT ASSY.

2шт.

3

87515774

ANGLE

1шт.

4

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

14шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

7

263636

ANTI-SKID STRIP

4" x 55"; Cut To Fit (40" Needed)

4шт.
