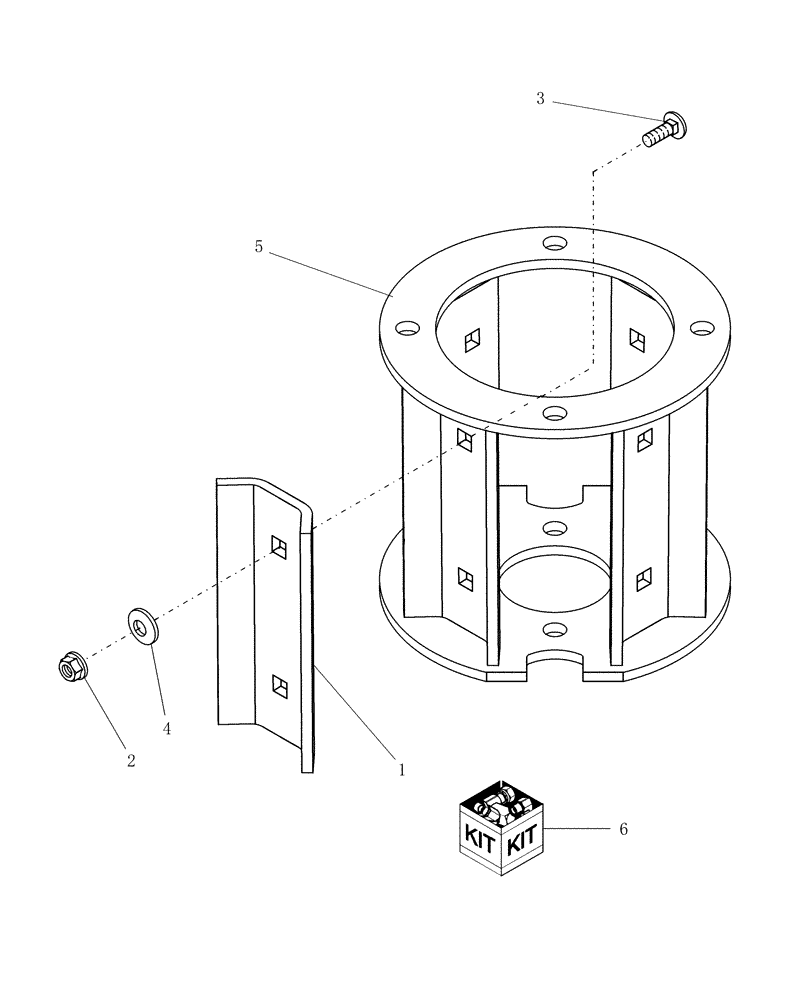

Запчасти Case IH RDX131 (20.18.04) - CANE PADDLE KIT Attachments

1

NSS

NOT SOLD SEPARAT

Paddle

4шт.

2

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

3

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

5

86634229

DRUM

Short

1шт.

6

87032621

KIT

Includes: Ref's 1-4

1шт.
