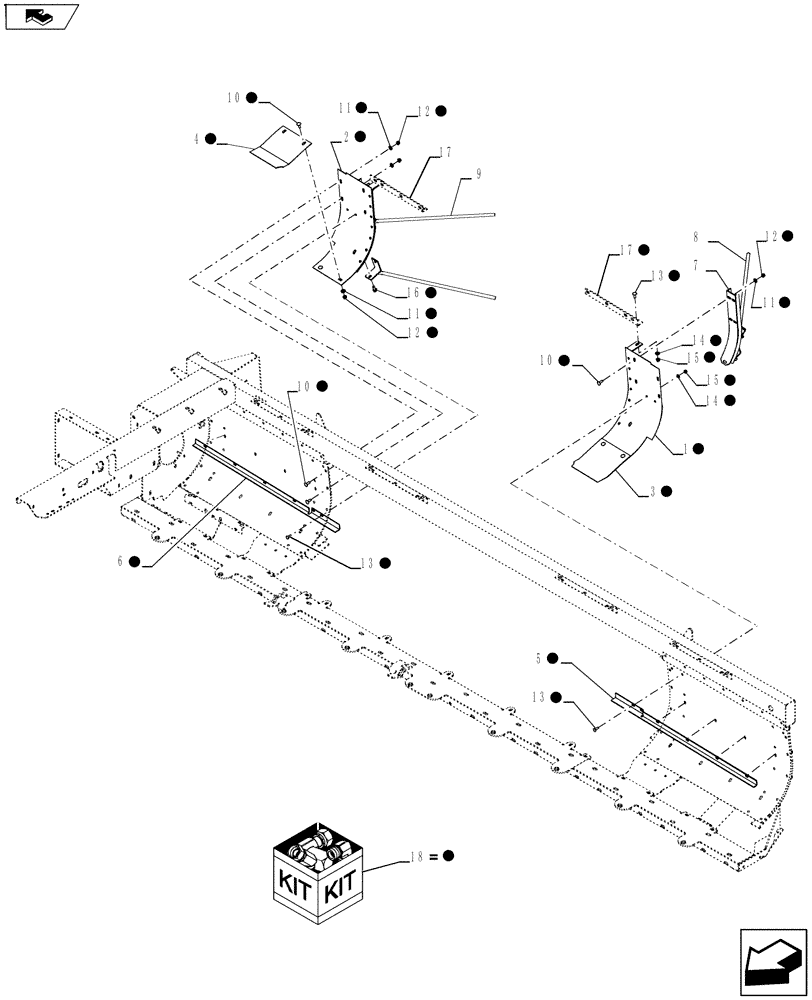

Запчасти Case IH RD193 (88.090.02) - DIA., 83 IN. CLOSURE KIT (88) - ACCESSORIES

1

84360241

FLOOR

Left Hand Extension

1шт.

2

84360230

FLOOR

Right Hand Extension

1шт.

3

84360220

FLOOR

Right Hand Insert

1шт.

4

84360222

FLOOR

Left Hand Insert

1шт.

5

87755269

STRIPPER

Left Hand

1шт.

6

87755270

STRIPPER

Right Hand

1шт.

7

84416073

BRACKET

Grass Seed

2шт.

8

87012926

ROD

Upper Left Hand, Grass Seed

2шт.

9

87012927

ROD

Upper Right Hand, Grass Seed

2шт.

10

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

13

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

16

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Grass Seed Only

8шт.

17

NSS

NOT SOLD SEPARAT

Angle

2шт.

18

84360482

DIA KIT, HARVESTER

83" Closure, Includes Ref. 1 Thru 6 and 10 Thru 15 & 17

1шт.
