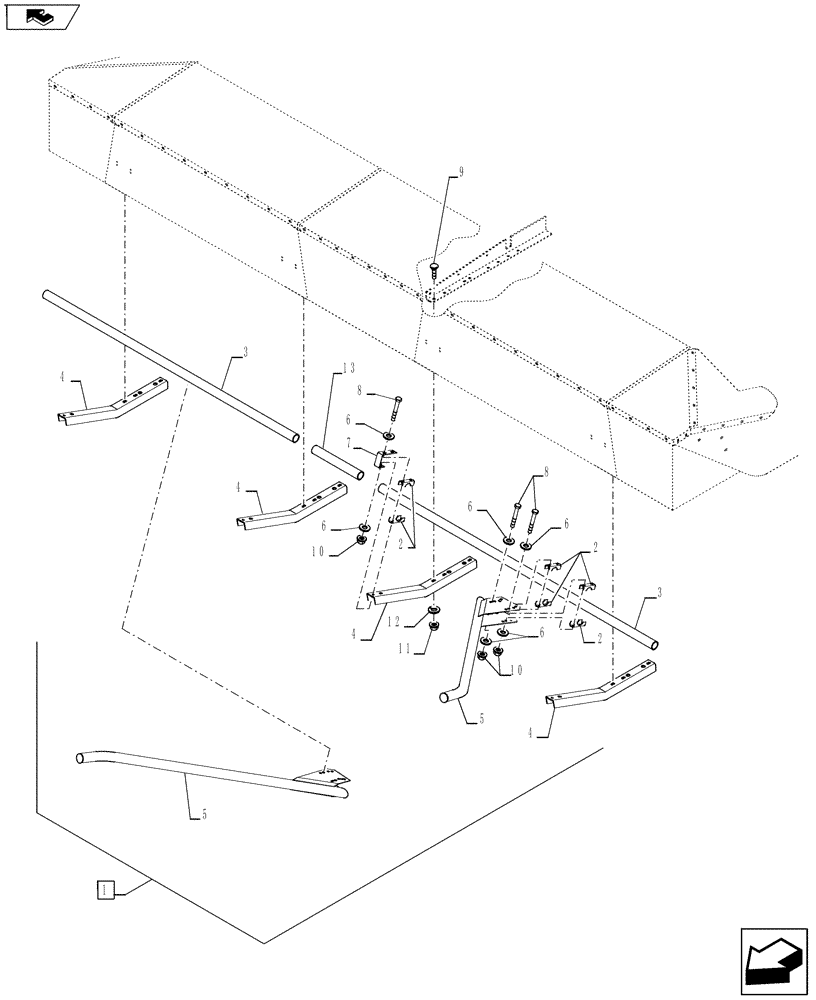

Запчасти Case IH RD193 (88.060.01) - DIA., PUSHBAR DIVIDER BUNDLE (88) - ACCESSORIES

1

716695036

DIA KIT, HARVESTER

Push Bar Divider, Includes: Ref. 2 thru 13

1шт.

2

86621660

CLAMP

16шт.

3

86576393

TUBE,48.30 mm OD x 2140 mm L

2шт.

4

86554321

CHANNEL

4шт.

5

86621656

TUBE

2шт.

6

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

32шт.

7

86581113

COVER

4шт.

8

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

16шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

10

9637692

NUT,3/8"-16, Gr B

16шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

13

86636377

TUBE,57.15 mm OD x 878 mm L

1шт.
