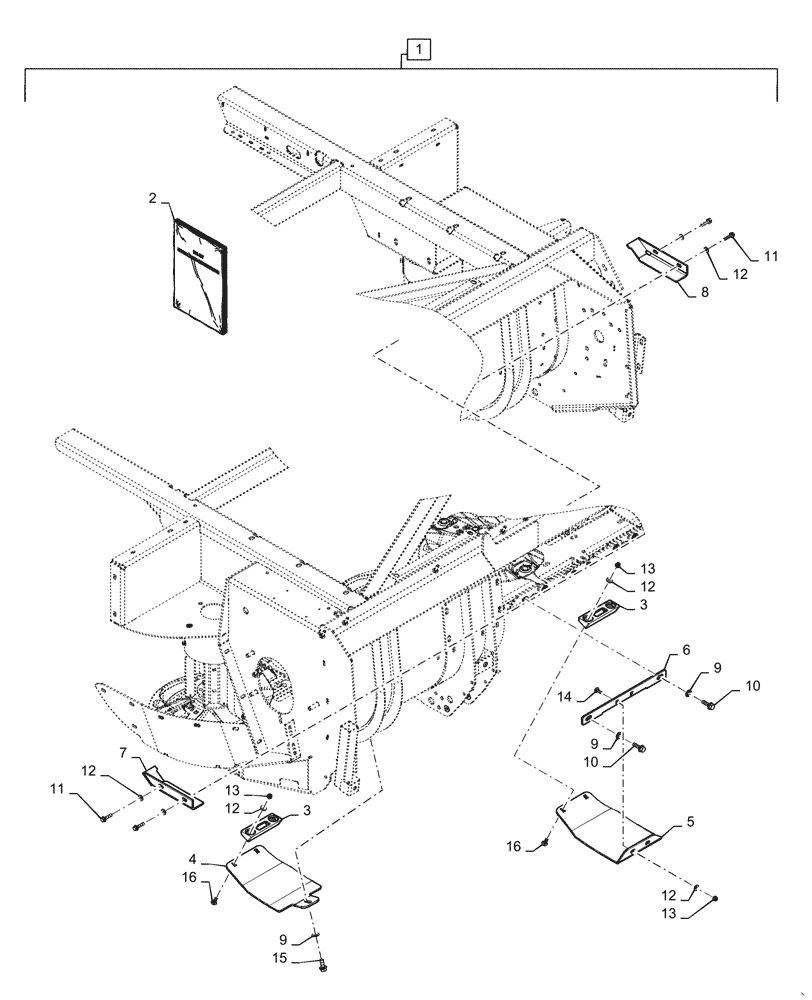

Запчасти Case IH RD193 (88.058.10) - KIT, 10 DISC FULL COVERAGE SKID SHOE (88) - ACCESSORIES

1

47668014

KIT

Incl 2 - 16

1шт.

2

47669354

INSTRUCTION

Full Coverage Skid Shoe

1шт.

3

47669397

BLOCK

Skid

9шт.

4

47579071

SKID/SHOE

4шт.

5

47579072

SKID/SHOE

5шт.

6

47669401

STRIP

Rear

5шт.

7

47599531

CAP

Protector, LH

1шт.

8

47599530

CAP

Protector, RH

1шт.

9

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

14шт.

10

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

10шт.

11

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

32шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

28шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

15

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

16

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

18шт.
