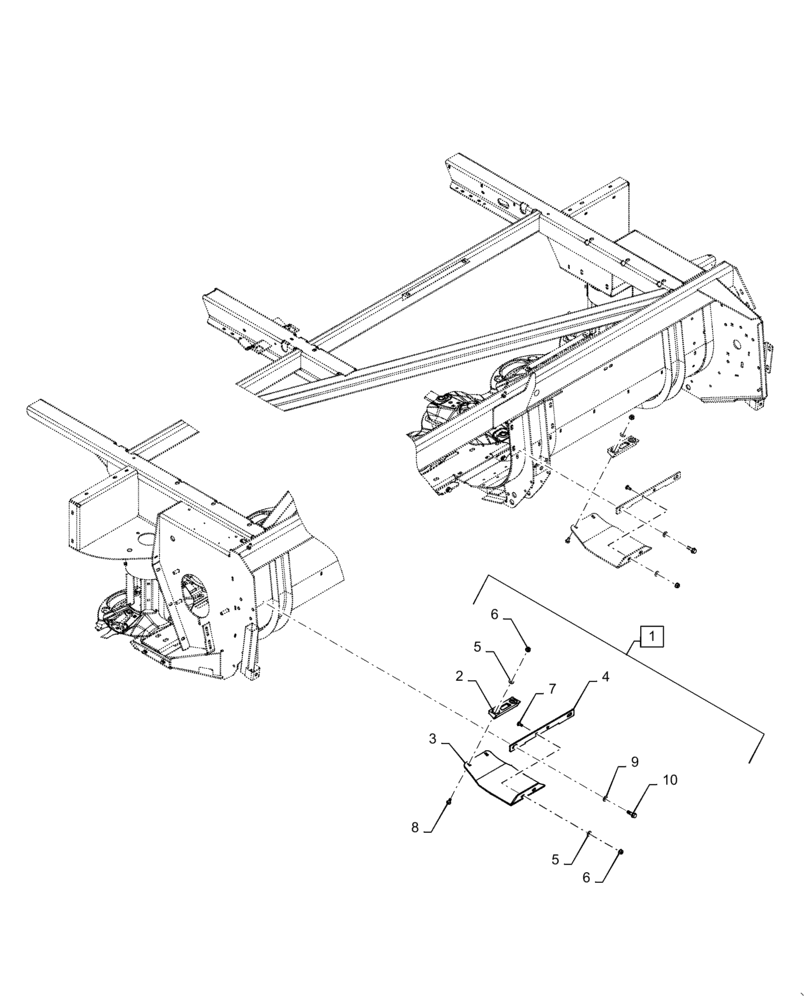

Запчасти Case IH RD193 (88.058.09) - KIT, 12 DISC FULL COVERAGE SKID SHOE (88) - ACCESSORIES

1

47668755

KIT

Incl 2 - 10

1шт.

2

47669397

BLOCK

Skid

2шт.

3

47579072

SKID/SHOE

2шт.

4

47669401

STRIP

Rear

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

8

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

9

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

10

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.
