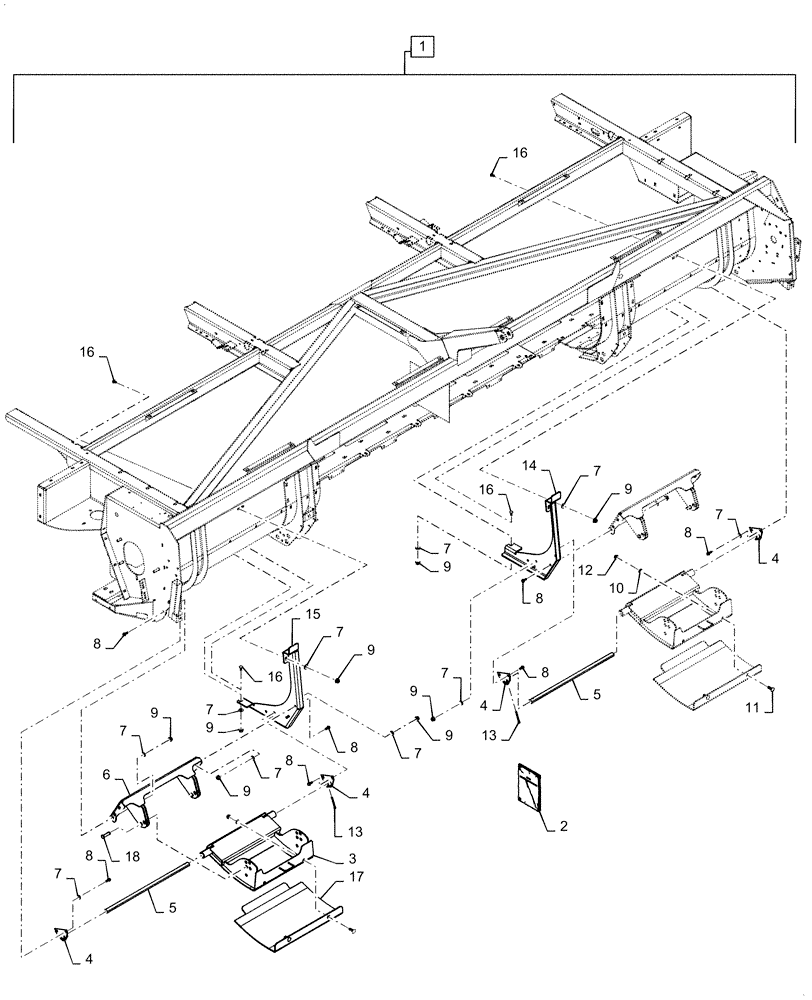

Запчасти Case IH RD193 (88.058.07) - DIA KIT, ADJUSTABLE SKID SHOE (88) - ACCESSORIES

1

415017026

KIT

Adjustable Skid Shoe, Incl 2 - 13, 16 - 18

1шт.

Kit Provides a Maximum 6" Cut Height from the Ground

1шт.

2

47685615

INSTRUCTION

Adjustable Skid Shoe

1шт.

3

47649190

SHOE

Adjustable Skid

2шт.

4

84211963

PIVOT

4шт.

5

86554217

SHAFT

2шт.

6

47679552

SUPPORT

2шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

11

280833

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G8

4шт.

12

86544265

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

13

80752

COTTER PIN,1/4" x 2 1/2"

2шт.

14

47754907

SUPPORT

RH, Not Incl In 1

1шт.

Only Used for 19' Unit

1шт.

15

47754905

SUPPORT

LH, Not Incl In 1

1шт.

Only Used for 19' Unit

1шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

17

47649627

SHOE

Skid

2шт.

18

86624084

CLEVIS PIN,15.88mm OD x 62.48mm L

4шт.
