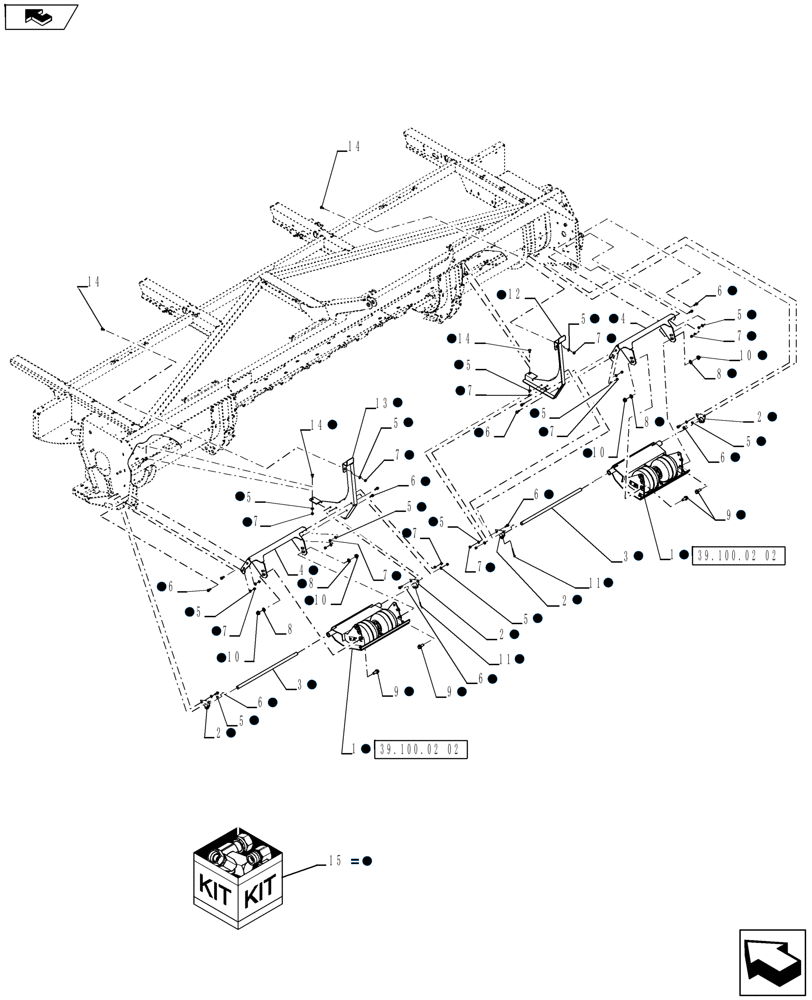

Запчасти Case IH RD193 (88.039.01) - DIA., GAUGE WHEEL KIT (88) - ACCESSORIES

1

0C

ORDER COMPONENTS

2шт.

2

84211963

PIVOT

4шт.

3

86554217

SHAFT

2шт.

4

84319643

SUPPORT

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

9

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

10

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

11

80752

COTTER PIN,1/4" x 2 1/2"

2шт.

12

84319645

SUPPORT

Right Hand, For 19 FT Header Only

1шт.

Not Included In Kit

1шт.

13

84319644

SUPPORT

Left Hand, For 19 FT Header Only

1шт.

Not Included In Kit

1шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

For 19 FT Header Only

4шт.

Not Included In Kit

1шт.

15

84316308

DIA KIT, HARVESTER

Dia Kit, Includes Ref. 1, (2) Gauge Wheel Assemblies & Ref. 2 Thru 11

1шт.
