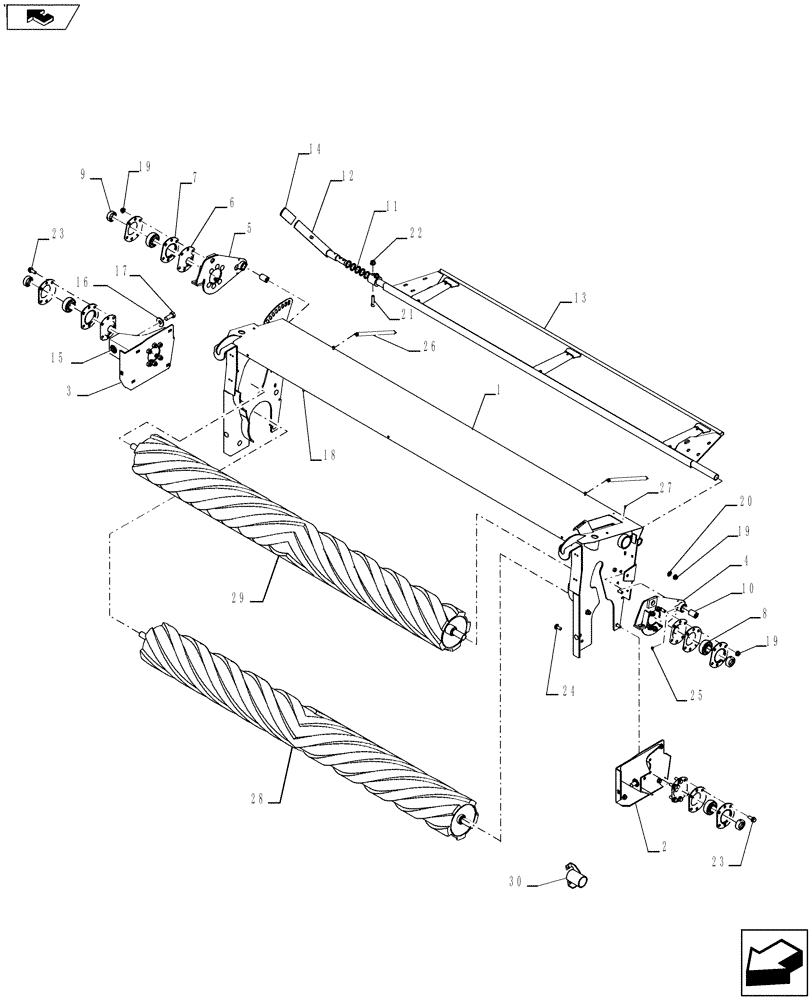

Запчасти Case IH RD193 (60.620.02) - CONDITIONER ASSEMBLY (60) - PRODUCT FEEDING

1

84307436

FRAME

Conditioner

1шт.

2

87489028

SUPPORT

Left Hand

1шт.

3

87489029

SUPPORT

Right Hand

1шт.

4

84303916

ARM

Left Hand, Incl 31

1шт.

5

84306579

ARM

Right Hand, Incl 31

1шт.

6

222200

SHROUD

4шт.

7

189786

FLANGE

8шт.

8

84258416

BALL BEARING,34.92mm ID x 77.5mm OD x 25mm W

4шт.

9

45393

COLLAR

4шт.

10

9849929

SPACER

2шт.

11

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

5шт.

12

86633031

HANDLE

, Serial Range: -YEG625005

1шт.

12

47654353

HANDLE

, Start Serial: YEG625005

1шт.

13

84525443

FRAME

Swath Gate, Flail and Rubber, Serial Range: -YEG625005

1шт.

Continue Use On Flail, SN Is For Rubber

1шт.

13

47654362

GATE ASSY

, Start Serial: YEG625005

1шт.

Rubber Only

1шт.

14

698486

HANDLE GRIP

, Start Serial: YEG625005

1шт.

15

781727

SPACER

1шт.

16

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

17

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

18

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

19

86521607

FLANGE NUT,Flg, 1/2"-13, G5

24шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

21

86570628

HEX SOC SCREW,1/2" - 13 x 2"

2шт.

22

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

23

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

12шт.

24

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

10шт.

25

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

26

510362

SPRING

2шт.

27

591875

RIVET,3/32" OD x 11/32" L

2шт.

28

84294053

ROLL

Steel, Chevron, Lower

1шт.

28

87379229

ROLLER ASSY.,247.6mm OD x 2846.2mm L

Hi Contact, Rubber

1шт.

Used For Upper & Lower, Ends Are Reversed

1шт.

Also See Ref. 30

1шт.

28

84392701

ROLL

Chevron Rubber, Lower

1шт.

28

84392701R

REMAN-ROLLER

Chevron Rubber, Lower

1шт.

28

84392701C

CORE-ROLLER

Return Number

1шт.

29

84294055

ROLL

Steel, Chevron, Upper

1шт.

29

84392692

ROLL,263.5mm OD x 2798.24mm L

Chevron Rubber Upper

1шт.

29

84392692R

REMAN-ROLLER

Chevron Rubber Upper

1шт.

29

84392692C

CORE-ROLLER

Return Number

1шт.

29

87379229

ROLLER ASSY.,247.6mm OD x 2846.2mm L

Hi Contact, Rubber

1шт.

30

86607882

TUBE,115 mm L

Used To Cover Splines On Shaft Of Hi Contact Roll Only

1шт.

Use Existing Hardware

1шт.

31

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

2шт.

32

86528254

SLEEVE

Incl In 29 (84294055), Not Shown

2шт.
