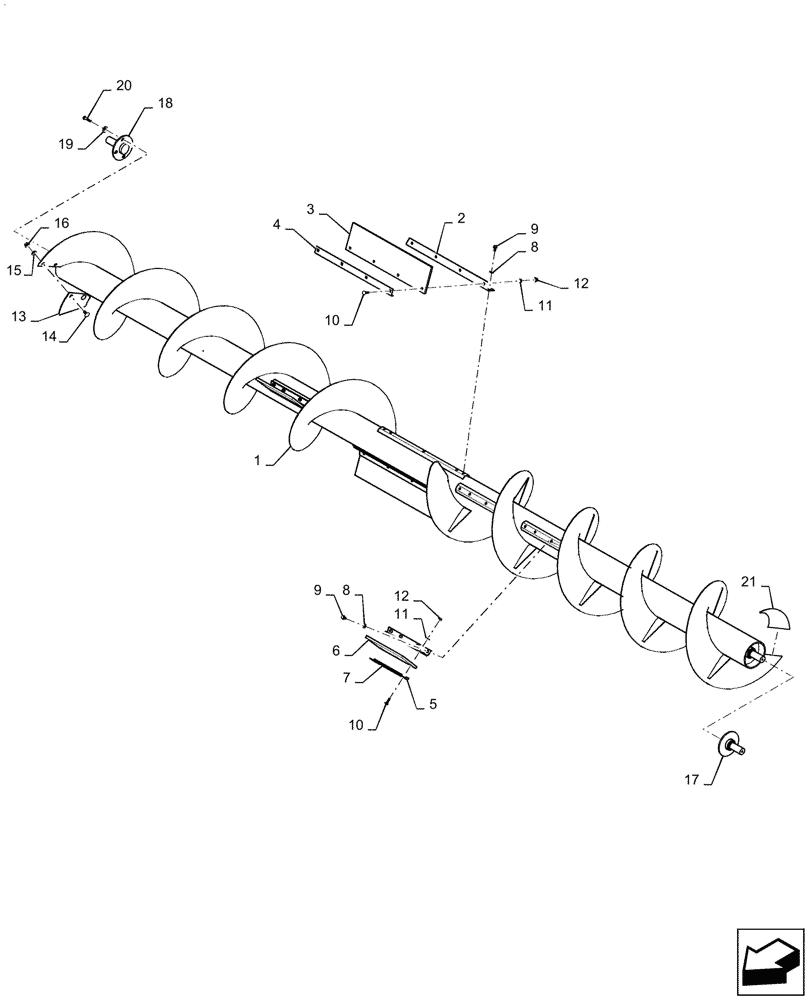

Запчасти Case IH RD193 (58.120.03) - AUGER, 19 FT (58) - ATTACHMENTS/HEADERS

1

87740821

AUGER

Includes: Ref. 17 & 18

1шт.

1a

48130279

Anti Wrapping

PLATE

1шт.

2

87582160

BRACKET

2шт.

3

614323

PADDLE

2шт.

4

255191

STRIP

2шт.

5

9843135

SUPPORT

6шт.

6

87582158

PADDLE

4шт.

7

783846

STRIP

4шт.

8

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

26шт.

9

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

26шт.

10

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

20шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.

13

84368404

EXTENSION

1шт.

14

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

16

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

17

87582139

SHAFT

1шт.

18

87582146

SHAFT

1шт.

19

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

4шт.

21

48130279

Weld In Part

PLATE

1шт.
