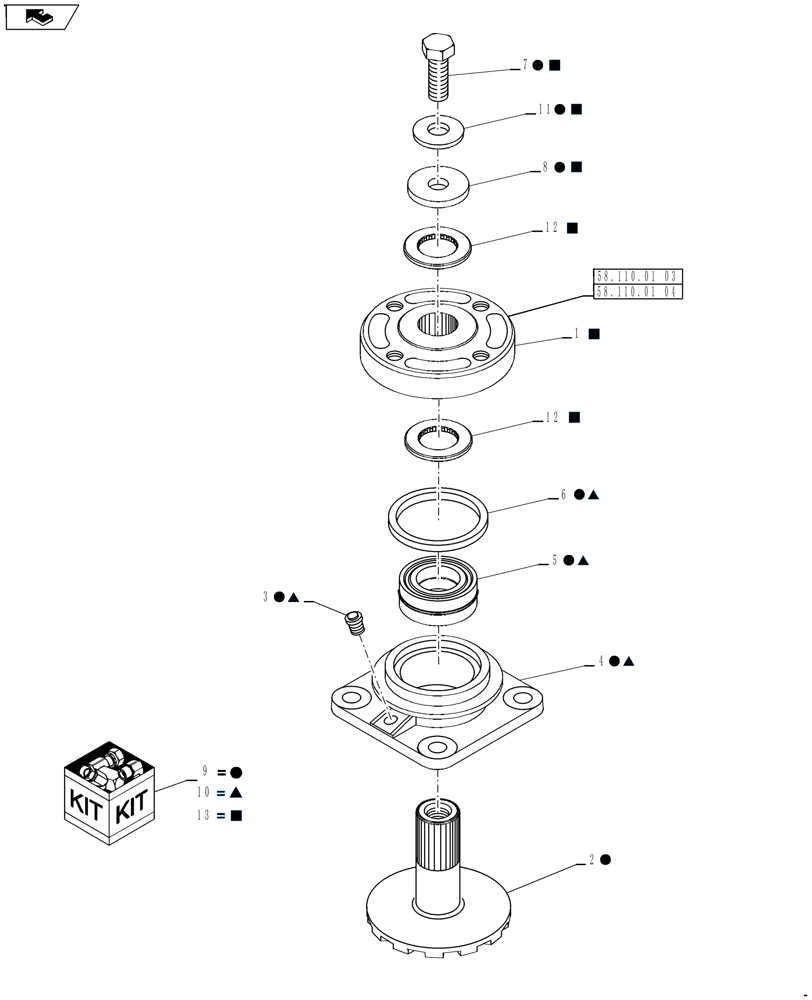

Запчасти Case IH RD193 (58.110.06) - TOP CAP SHOCK HUB (58) - ATTACHMENTS/HEADERS

1

84370851

HUB

Shock

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, 30T

1шт.

3

572820

BREATHER

Breather

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

370018

SNAP RING,M72, Internal

1шт.

7

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

8

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

9

84389125

TOP

Top Cap, Shock, Inc; Ref. 2 Thru 8 & 11

1шт.

10

84395006

HOUSING

Kit, Includes: Ref. 3, 4, 5 & 6

1шт.

11

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

12

84259890

WASHER,31.81mm ID x 56mm OD x 4.76mm Thk

Splined

2шт.

13

84393813

KIT

Shock Hub Repair, Includes Qty. (1) of Ref. 1, 7, 8 & 11 & (2) Of 12

1шт.
