Запчасти Case IH RD193 (58.110.01[02]) - CUTTERBAR, 12 DISC (58) - ATTACHMENTS/HEADERS

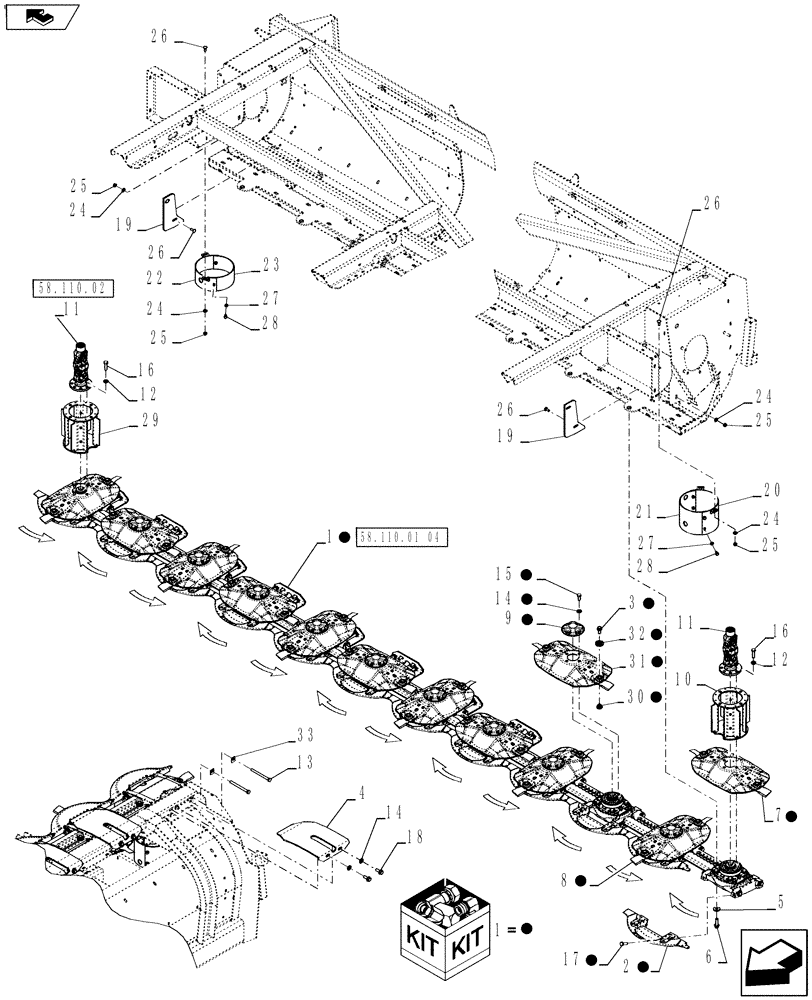

Схема запчастей Case IH RD193 - (58.110.01[02]) - CUTTERBAR, 12 DISC (58) - ATTACHMENTS/HEADERS
23
24
33
25
26
26
1
11
1
1
6
4
1
1
19
24
18
1
10
3
24
28
8
16
17
25
1
27
1
7
1
30
25
24
12
32
2
19
20
1
16
21
1
22
14
26
1
1
9
12
11
31
13
14
15
home
25
58.110.01 04
27
26
58.110.02
29
1
1
28
5

Артикул

Название

Примечание

Количество

1

84370072

CUTTERBAR

12 Disc

1шт.

Cutterbar Does Not Include Drums, Discs or Cutterbar Driveshafts. Those Items must be Ordered as Required.

1шт.

2

84188458

STONEGUARD

12шт.

3

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

24шт.

4

84142215

SKID/SHOE

12шт.

4

84376351

SHOE

Hi Stubble

12шт.

5

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

11шт.

6

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

7

84271203

KNIFE

CW, 18°, Standard

12шт.

7

84425930

KNIFE

CW,18°, Serrated

12шт.

7

84255699

BLADE

CW, 4 SM,14°

12шт.

7

84343225

KNIFE

CW, 7°

12шт.

7

47581117

KNIFE

CW, 14 Deg, Serrated

12шт.

8

84271205

KNIFE

CCW, 18°, Standard

12шт.

8

84425931

KNIFE

CCW,18°, Serrated

12шт.

8

84255700

BLADE

CCW, 4 SM,14°

12шт.

8

84343226

KNIFE

CCW, 7°

12шт.

8

84375859

KNIFE

Rock 116mm

24шт.

8

47581118

KNIFE

CCW, 14 Deg, Serrated

12шт.

9

87014784

CAP

12шт.

10

84188955

DRUM

CW

1шт.

11

87750582

PTO

2шт.

12

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

13

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

24шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

64шт.

15

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

40шт.

16

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

17

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

24шт.

18

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

24шт.

19

84211780

STRIPPER

2шт.

20

84369930

GUARD

Left Hand

1шт.

21

84369922

SHIELD

1шт.

22

84369925

GUARD

Right Hand

1шт.

23

84369942

SHIELD

1шт.

24

14045

DUST CAP

8шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

26

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

28

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

29

84373475

DRUM

CCW

1шт.

30

87725066

NUT

24шт.

31

84234720

DISC

Lifters Are Shown On Fig. 58.110.03

12шт.

32

84387339

SHIELD

Knife Bolt

24шт.

33

84418951

PLATE

24шт.

Выбрано товаров: 44
