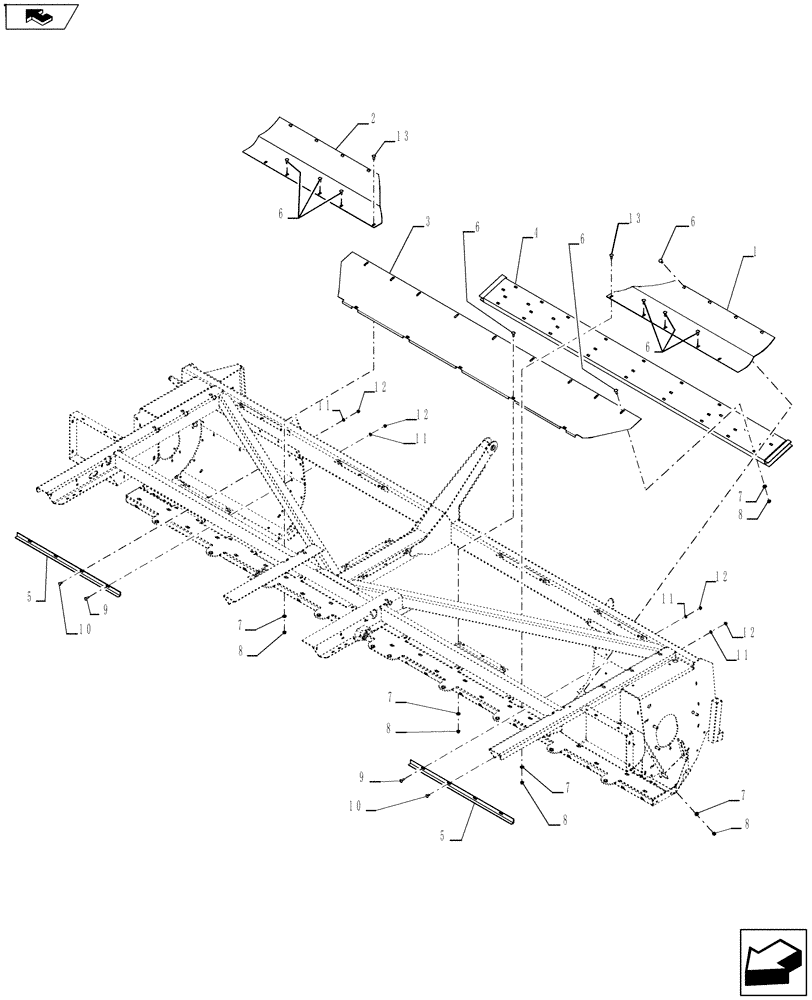

Запчасти Case IH RD193 (39.100.03[02]) - FLOOR (39) - FRAMES AND BALLASTING

1

84224875

FLOOR

Left Hand

1шт.

2

84224877

FLOOR

Right Hand

1шт.

3

84169341

FLOOR

1шт.

4

84233527

EXTENSION

Floor, Dk Gr

1шт.

5

87487995

ANGLE

2шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

32шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

40шт.

9

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

13

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

8шт.
