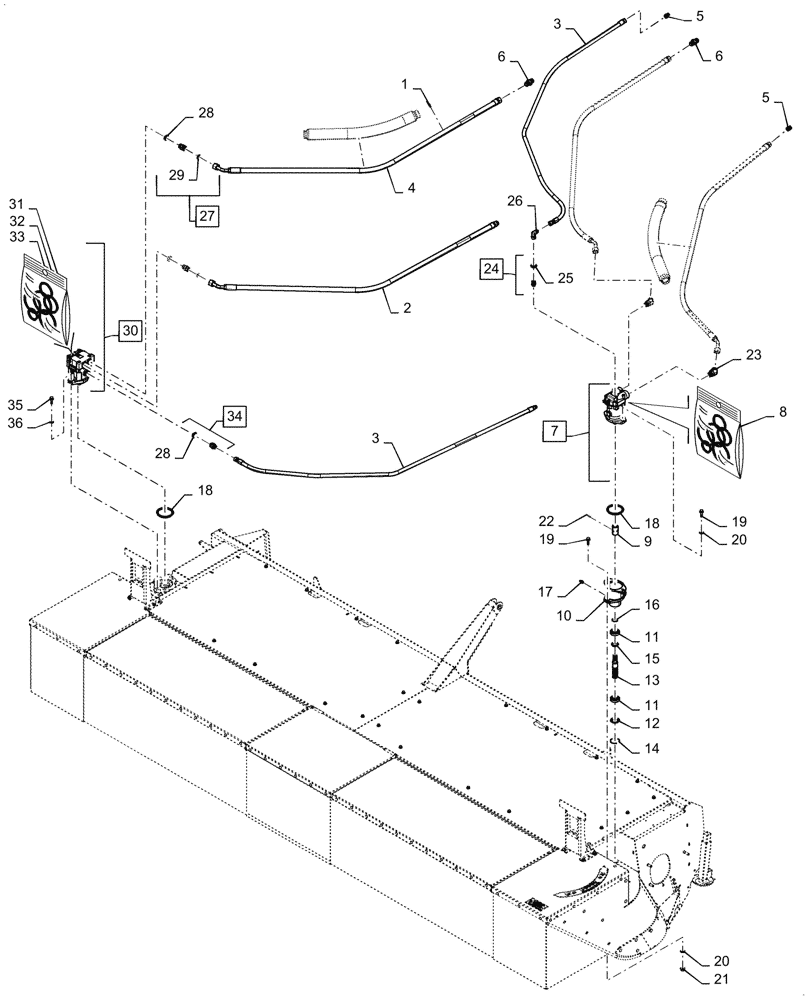

Запчасти Case IH RD193 (35.910.01[02]) - HYDRAULIC SYSTEM, ASN YGG627001 (35) - HYDRAULIC SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

8шт.

2

47511063

HOSE

16FT

2шт.

2

47504229

HOSE

19FT

2шт.

3

47501230

TUBE

19FT

2шт.

4

47511064

HYDRAULIC HOSE

16FT

2шт.

4

47505575

HYDRAULIC HOSE

19FT

2шт.

5

86705421

HYD CONNECTOR

2шт.

6

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

7

87037263

MOTOR

1шт.

8

87060667

SEAL KIT

Incl In Ref 7

1шт.

9

601802

COUPLING,15T

1шт.

10

84296878

HOUSING

Assy

1шт.

11

86607457

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

12

86549587

SHIELD

1шт.

13

84185342

SHAFT

1шт.

14

32324

SNAP RING,2.44", Int, #244

1шт.

15

86549589

SPACER

1шт.

16

86000341

SNAP RING,#137. Ext

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

1шт.

18

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

20

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

23

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

24

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl In Ref 24

4шт.

26

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

27

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl In Ref 27, 34

2шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl In Ref 27

2шт.

30

48021188

HYDRAULIC MOTOR

1шт.

31

48021274

KIT

Incl In Ref 30

1шт.

32

48021275

KIT

Incl In Ref 30

1шт.

33

48021276

KIT

Incl In Ref 30

1шт.

34

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

35

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

36

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.
