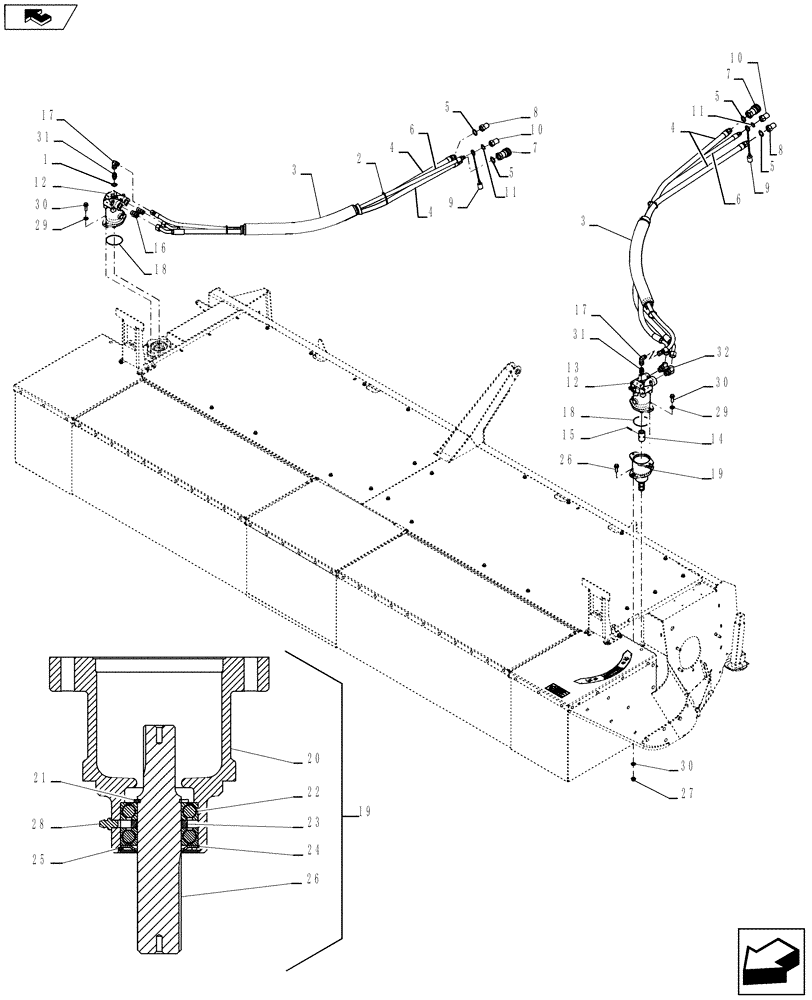

Запчасти Case IH RD193 (35.910.01[01]) - HYDRAULIC SYSTEM, BSN YGG627000 (35) - HYDRAULIC SYSTEMS

1

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

3

86520217

SLEEVE

2шт.

4

87653966

HOSE,19.05mm ID x 2286mm L, SAE 100R13

19mm ID x 2286mm L, 45º One end, Includes Ref. 5

4шт.

RD163

1шт.

4

87710814

HOSE,19mm ID x 2896mm L, SAE 100R13

19mm ID x 2896mm L, 45º One End, Includes Ref. 5

4шт.

RD193

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

6

87023204

HOSE,15.88mm ID x 2540mm L, SAE 100R6

Includes Ref. 11

2шт.

RD163

1шт.

6

87710815

HOSE,15.88mm ID x 3149.6mm L, SAE 100R6

5/8" ID x 124" L, Includes Ref. 11

2шт.

RD193

1шт.

7

86564734

COUPLING

Female

2шт.

8

9820148

COUPLING,1-1/16" - 12

Male

2шт.

9

86621124

DUST CAP

2шт.

10

87037008

QUICK MALE COUPLING

2шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

87037263

MOTOR

3.0 CI

2шт.

Components not serviced.

1шт.

12

87037263R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

12

87037263C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

13

87060667

SEAL KIT

1шт.

For 87037263 Hydraulic Motor.

1шт.

14

601802

COUPLING,15T

1шт.

15

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

17

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

18

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

19

0C

ORDER COMPONENTS

Coupling Assy.

1шт.

20

84296878

HOUSING

1шт.

21

86000341

SNAP RING,#137. Ext

1шт.

22

86607457

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

23

86549589

SPACER

1шт.

24

86549587

SHIELD

1шт.

25

32324

SNAP RING,2.44", Int, #244

1шт.

26

84185342

SHAFT

1шт.

27

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

30

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

31

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

2шт.

32

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.
