(31.260.04) - PTO COMPONENTS, GEARBOX DRIVE, 19FT

Запчасти Case IH RD193 (31.260.04) - PTO COMPONENTS, GEARBOX DRIVE, 19FT (31) - IMPLEMENT POWER TAKE OFF

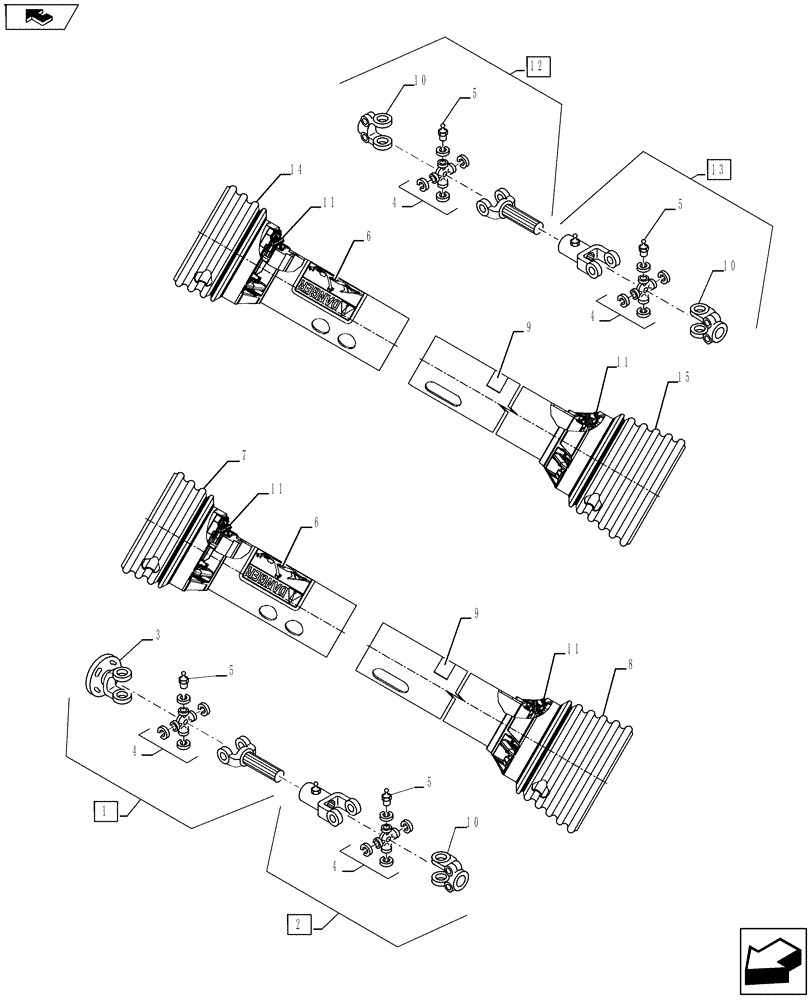

Схема запчастей Case IH RD193 - (31.260.04) - PTO COMPONENTS, GEARBOX DRIVE, 19FT (31) - IMPLEMENT POWER TAKE OFF
15
9
10
6
4
4
11
4
11
14
2
12
13
8
5
11
1
5
3
9
5
10
5
10
6
11
4
7
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84392673

PTO

Shaft Half, Flanged, With Guard

1шт.

Includes: Ref. 3, 4, 6, 7

1шт.

2

84392675

PTO

Tube Half With Guard

1шт.

Includes: Ref. 4, 8, 9, 10

1шт.

3

87024320

YOKE

Flange

1шт.

4

136908

SPIDER

Includes Ref. 5

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

849471

DANGER DECAL

1шт.

7

84392688

GUARD

Outer

1шт.

8

84392689

GUARD

Inner

1шт.

9

849472

DANGER DECAL

1шт.

10

84392684

YOKE

1шт.

11

84393030

KIT

Guard Repair, Includes: 1 Bearing and 1 Easy Lock With Instructions

2шт.

Each Kit Repairs Qty. (1) Inner or Outer Guard

1шт.

12

84392676

PTO

Shaft Half With Guard

1шт.

Includes: Ref. 4, 6, 10 & 14

1шт.

13

84392675

PTO

Tube Half With Guard

1шт.

Includes: Ref. 4, 9, 10 & 15

1шт.

14

84392695

GUARD

Outer Guard

1шт.

15

84392694

GUARD

Inner Guard

1шт.
