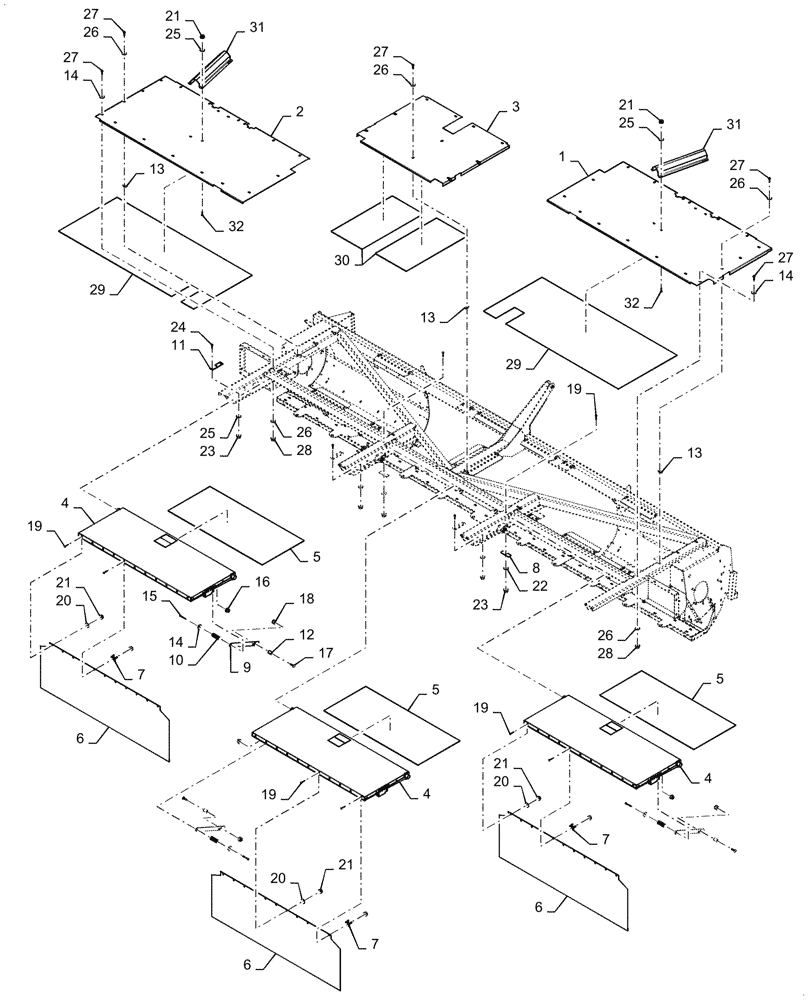

Запчасти Case IH RD193 (90.119.02[02]) - CENTER SHIELD ASSY, ASN YGN260537 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48017016

COVER

LH, Red

1шт.

2

48017018

COVER

RH, Red

1шт.

3

84238385

COVER

Center, Red

1шт.

4

84215595

HOOD

Red

3шт.

5

86582726

LINER

Sheet, Plastic

3шт.

6

84226257

CURTAIN

3шт.

7

86582727

CLIP

15шт.

8

84300491

RETAINER

2шт.

9

84226556

LATCH

3шт.

10

86628837

SPRING,Compression, 23mm OD x 57.15mm L

3шт.

11

84242081

RUBBER PAD

6шт.

12

86622574

SPACER

3шт.

13

86539811

SPRING NUT

32шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

15

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

17

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

3шт.

18

9636698

NUT,1/2"-13, GB

3шт.

19

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

35шт.

20

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

18шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

41шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

9823743

FLANGE NUT,Flg, 5/16"-18

14шт.

24

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

25

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

20шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

27

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

34шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

29

47966082

LINER

Plastic

2шт.

30

47964992

LINER

Plactic, Center

2шт.

31

47975423

WEAR STRIP

Red

2шт.

32

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

33

47807625

DECAL

Warning Cluster

3шт.
