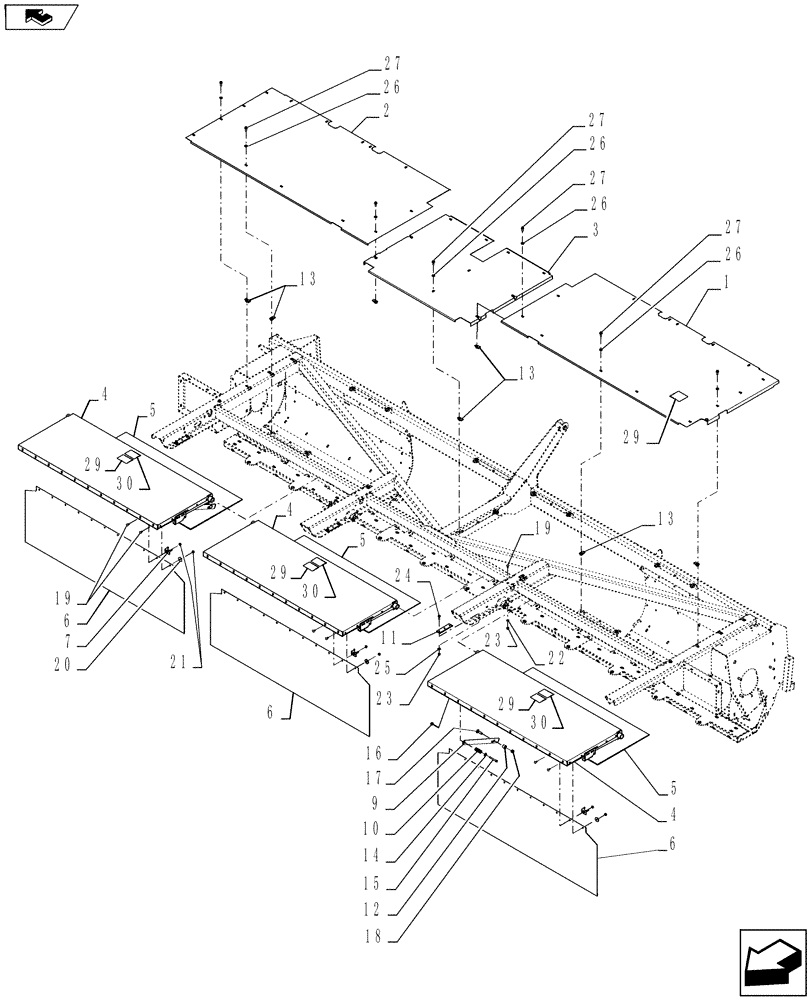

Запчасти Case IH RD193 (90.119.02[01]) - CENTER SHIELD ASSY, BSN YGN260536 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87472836

COVER

Left Hand, Includes Decal Ref. 29

1шт.

2

87472838

COVER

Right Hand

1шт.

3

84238385

COVER

1шт.

4

84215595

HOOD

Includes Decals Ref. 29 & 30

3шт.

5

86582726

LINER

3шт.

6

84226257

CURTAIN

3шт.

7

86582727

CLIP

15шт.

9

84226556

LATCH

3шт.

10

86628837

SPRING,Compression, 23mm OD x 57.15mm L

3шт.

11

84242081

RUBBER PAD

6шт.

12

86622574

SPACER

3шт.

13

86539811

SPRING NUT

26шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

15

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

17

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

3шт.

18

87333862

NUT

3шт.

19

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

35шт.

20

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

18шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

33шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

9823743

FLANGE NUT,Flg, 5/16"-18

14шт.

24

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

25

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

12шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

27

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

28шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

29

86611825

WARNING DECAL

4шт.

30

86628571

WARNING DECAL

3шт.
