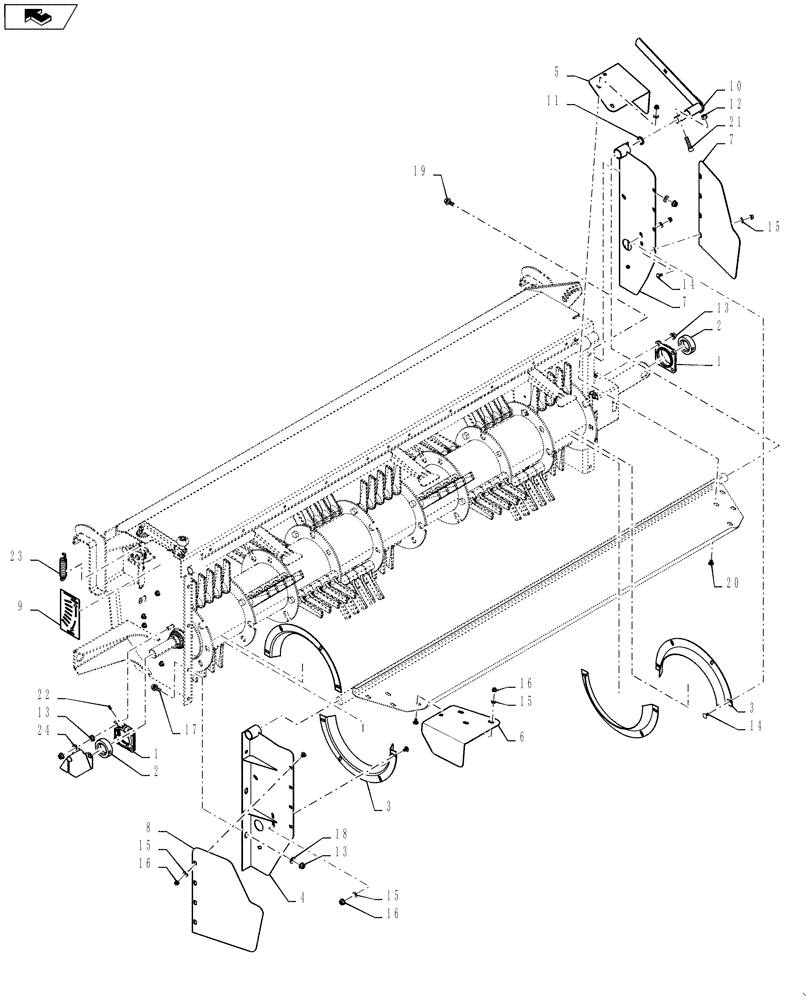

Запчасти Case IH RD163 (60.620.02[01]) - FLAIL CONDITIONER ASSEMBLY (60) - PRODUCT FEEDING

1

84482626

BEARING ASSY,Bearing and Housing

2шт.

2

45393

COLLAR

2шт.

3

84546824

SHIELD

1шт.

4

86581307

SHIELD

Left Hand

1шт.

5

84528410

DEFLECTOR

Right Hand

1шт.

6

84528409

DEFLECTOR

Left Hand

1шт.

7

86581308

SHIELD

Right Hand

1шт.

8

84479125

EXTENSION

1шт.

9

84528601

DECAL

Hood Adjustment

1шт.

10

84337868

HANDLE

1шт.

11

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

12

9636698

NUT,1/2"-13, GB

1шт.

13

86521607

FLANGE NUT,Flg, 1/2"-13, G5

10шт.

14

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

19

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

20

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

21

86570628

HEX SOC SCREW,1/2" - 13 x 2"

1шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

23

143224

SPRING,Extension, 1" OD x 5-7/16" L

1шт.

24

87037494

SHIELD

1шт.
