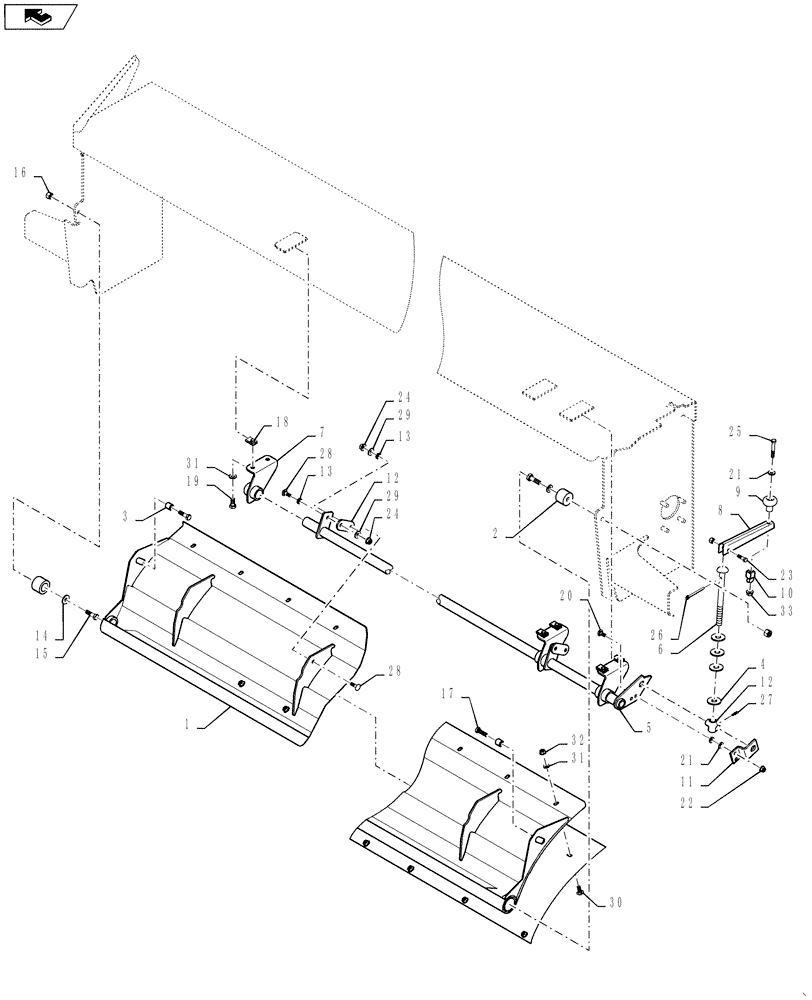

Запчасти Case IH RD163 (60.620.01) - ROTOR ASSEMBLY HOOD (60) - PRODUCT FEEDING

1

86581300

HOOD

1шт.

2

86592518

SPACER

2шт.

3

42610

BUSHING

2шт.

4

81543

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

5

86581302

PIPE

1шт.

6

86543106

ROD

1шт.

7

84468728

SLEEVE

1шт.

8

216622

HANDLE

1шт.

9

33781

KNOB

1шт.

10

223162

CLIP

1шт.

11

86551761

ANGLE

1шт.

12

86581310

LINK

2шт.

13

516579

BUSHING,9.75mm ID x 15.82mm OD x 7.14mm L

4шт.

14

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

15

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

16

9636698

NUT,1/2"-13, GB

2шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

18

86539811

SPRING NUT

6шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

21

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

5шт.

22

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

23

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

24

86521609

FLANGE NUT,Flg, 3/8"-16

6шт.

25

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

26

164086

COTTER PIN

1шт.

27

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

28

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

29

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

30

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

20шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

26шт.

32

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.

33

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.
