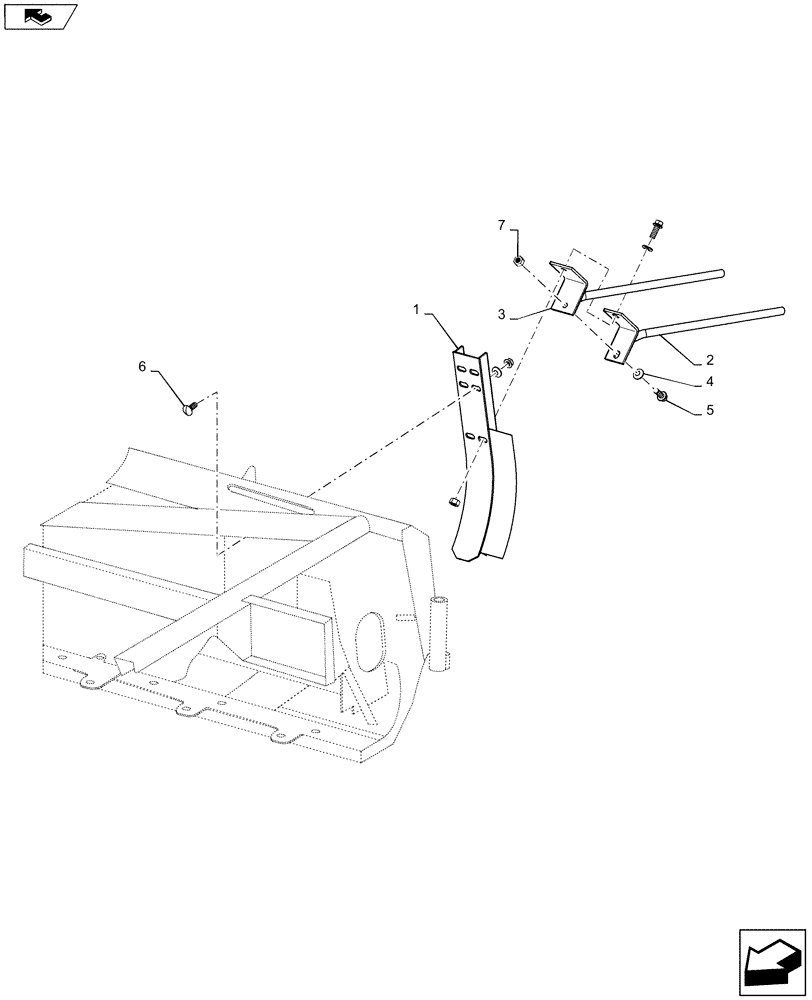

Запчасти Case IH RD163 (58.120.06) - WINDROW, GRASS SEED (58) - ATTACHMENTS/HEADERS

1

84416073

BRACKET

2шт.

Also See Fig. 88.090.01 & 02

1шт.

2

87012926

ROD

Left Hand, Shown

1шт.

3

87012927

ROD

Right Hand, Not Illustrated

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.
