Запчасти Case IH RD163 (58.120.01) - AUGER ASSY (58) - ATTACHMENTS/HEADERS

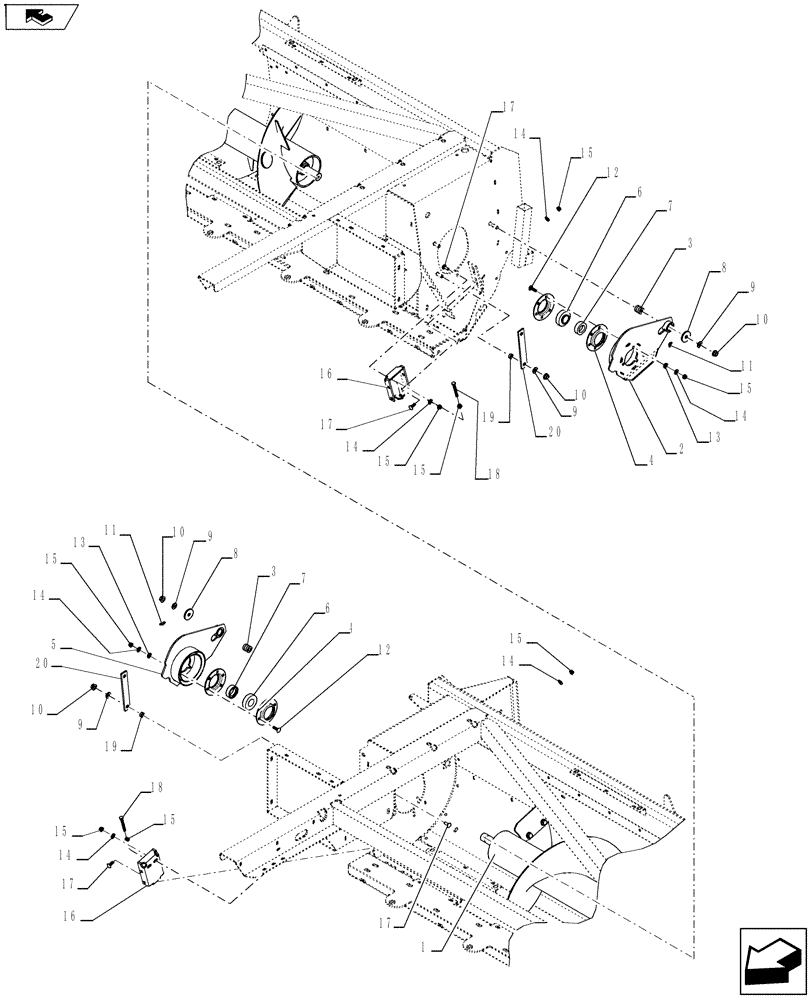

Схема запчастей Case IH RD163 - (58.120.01) - AUGER ASSY (58) - ATTACHMENTS/HEADERS
11
9
15
18
14
13
8
17
7
17
14
9
19
14
4
7
15
10
5
14
13
3
14
6
home
10
12
15
10
1
10
20
15
15
8
18
11
16
9
15
14
15
17
4
20
17
6
12
9
15
2
19
3
16

Артикул

Название

Примечание

Количество

1

87740807

AUGER

16 Ft., See Fig. 58.120.02

1шт.

1

87740821

AUGER

19 Ft., See Fig. 58.120.03

1шт.

1

84215608

AUGER

Tapered, Grass Seed, See Fig. 58.120.04

1шт.

2

84346241

ARM

Left Hand

1шт.

3

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

4

138820

FLANGED BEARING

4шт.

5

84346262

ARM

Right Hand

1шт.

6

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

7

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

8

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

9

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

8шт.

10

86521607

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

12

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

13

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

16

84368408

STOP

2шт.

17

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

18

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

19

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

20

600202

GUIDE

2шт.

Выбрано товаров: 22
