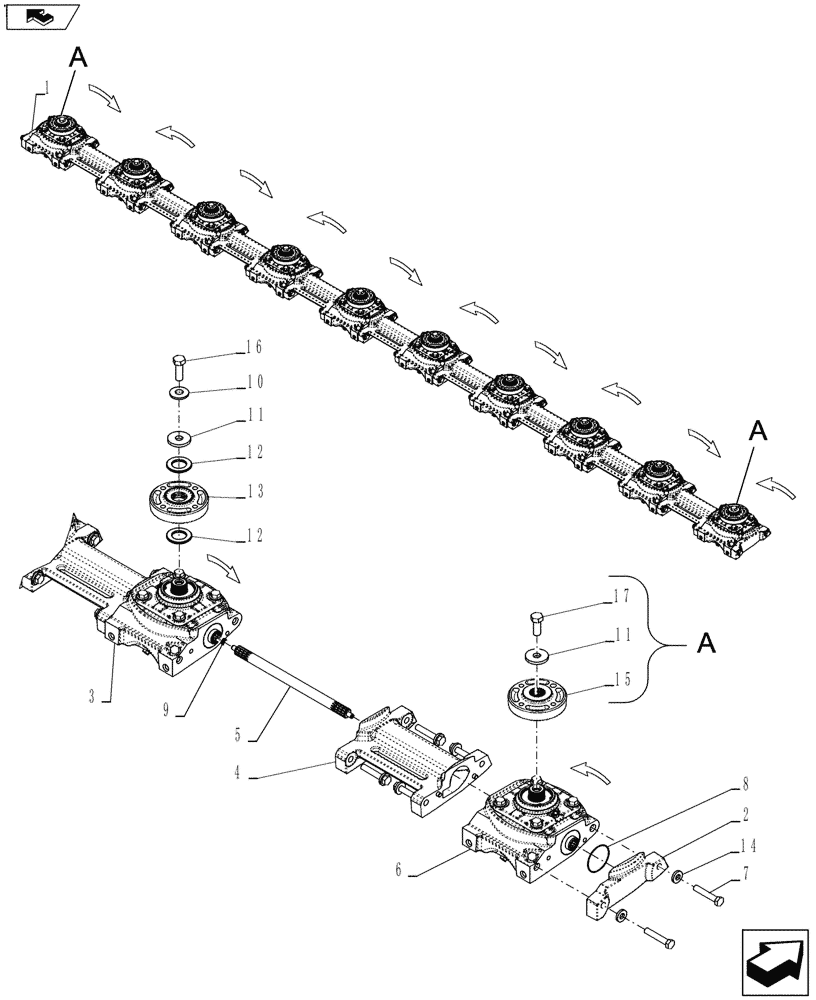

Запчасти Case IH RD163 (58.110.01[03]) - CUTTERBAR BASIC, 10 DISC (58) - ATTACHMENTS/HEADERS

1

84160901

END

Left Hand

1шт.

2

84160904

END

Right Hand

1шт.

3

84389131

MODULE

CW, Breakdown on Fig. 58.110.04

5шт.

3

84389131R

REMAN-MODULE

DURABINE™ 416 (2/11-)

5шт.

3

84389131C

CORE-MODULE

Return Number

5шт.

4

84195732

SPACER

9шт.

5

84150183

SHAFT

9шт.

6

84389133

MODULE

CCW, Breakdown on Fig. 58.110.04

5шт.

6

84389133R

REMAN-MODULE

DURABINE™ 416 (2/11-)

5шт.

6

84389133C

CORE-MODULE

Return Number

5шт.

6

47763501R

REMAN-GEARBOX

Reman CCW, Breakdown on Fig. 58.110.04

5шт.

6

47763501C

CORE-GEARBOX

Core Return Number

5шт.

7

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

40шт.

8

241104

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

2шт.

9

84385629

WAVE WASHER

18шт.

10

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

8шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

10шт.

12

84259890

WASHER,31.81mm ID x 56mm OD x 4.76mm Thk

16шт.

Splined Washers Must Be Seated Before Tightening Top Cap Bolt, To Prevent Washer Cracks.

1шт.

13

84370851

HUB

NSS service with Kit number 84393813 only.

8шт.

14

262183

WASHER

40шт.

15

84370850

HUB

Discs 1 & 10 Only

2шт.

16

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

8шт.

17

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

Discs 1 & 10 Only

2шт.
