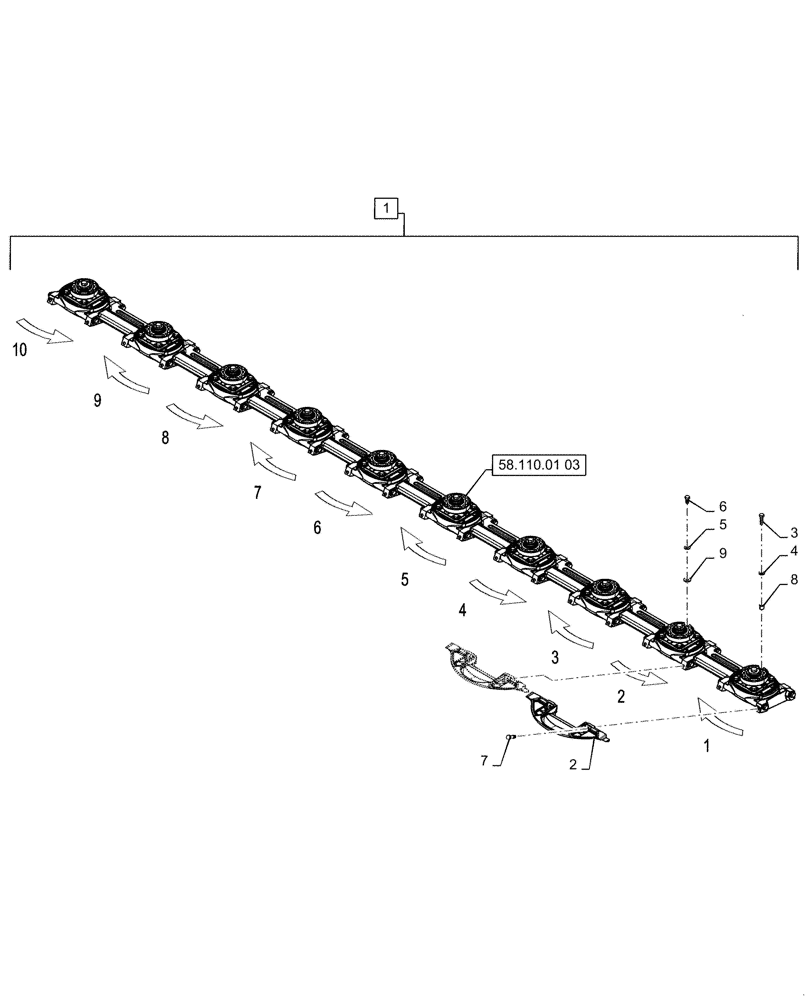

Запчасти Case IH RD163 (58.110.01[02]) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

47834659

CUTTERBAR

10 Disc, Incl 2 - 9

1шт.

Cutterbar Only, Does Not Include Drums, Blades, Driveshafts and Caps

1шт.

2

47720599

GUARD

Rock

10шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

4

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

5

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

32шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

7

47491369

BOLT

20шт.

8

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

8шт.

9

87613260

WASHER,0.53" ID x 1.25" OD x 0.12" Thk

32шт.
