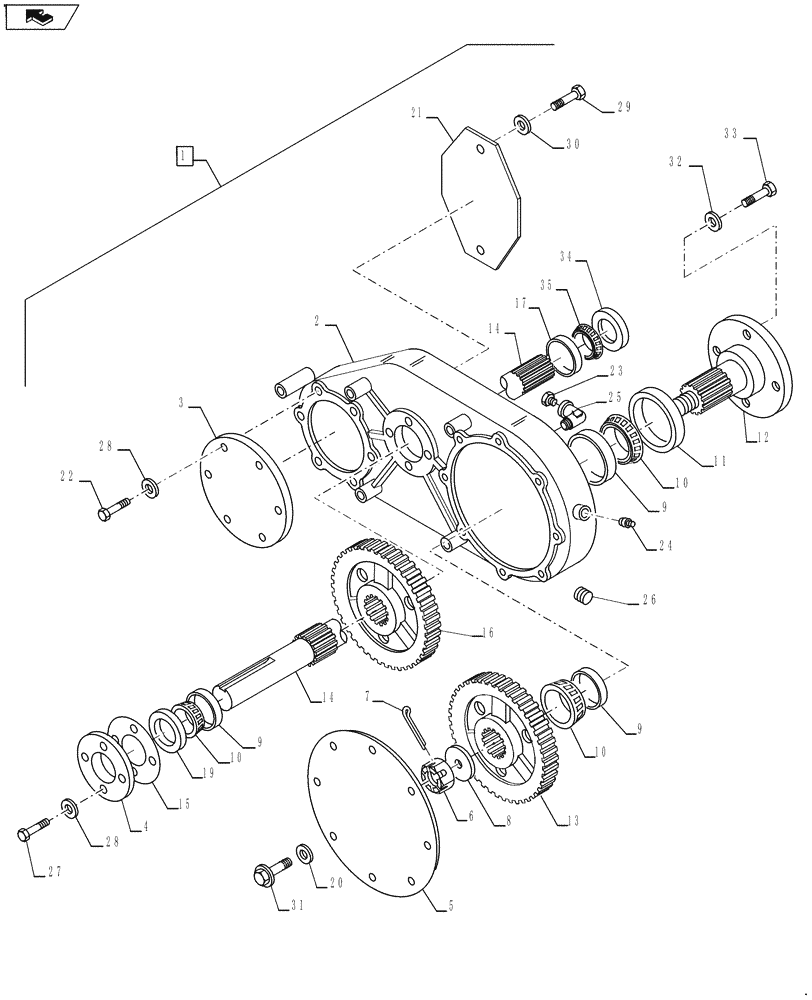

Запчасти Case IH RD163 (58.100.03) - DRIVE GEARBOX (58) - ATTACHMENTS/HEADERS

1

84365858

GEARBOX

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

87013725

COVER

1шт.

4

247491

COVER

1шт.

5

86540376

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

8

56867

WASHER

1шт.

9

175508

BEARING CUP,59.16mm OD x 11.94mm W

3шт.

10

175507

BEARING CONE,35 mm ID x 16.764 mm

3шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

87051773

GEAR,48T External, 23T Spline

48T

1шт.

14

84172042

SHAFT

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

15

86617096

SHIM

.018" Thk

1шт.

16

87051765

GEAR,48T External, 23T Spline

48T

1шт.

17

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

19

84183904

SEAL

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

86632445

COVER

1шт.

22

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

23

572820

BREATHER

1шт.

24

80781

PLUG,3/8" - 18 NPT

Pipe

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

80788

MAGNETIC PLUG

1шт.

27

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

33

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

34

701519

OIL SEAL

1шт.

35

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.
