(39.100.03[03]) - FLOOR, FLAIL CLOSURE

Запчасти Case IH RD163 (39.100.03[03]) - FLOOR, FLAIL CLOSURE (39) - FRAMES AND BALLASTING

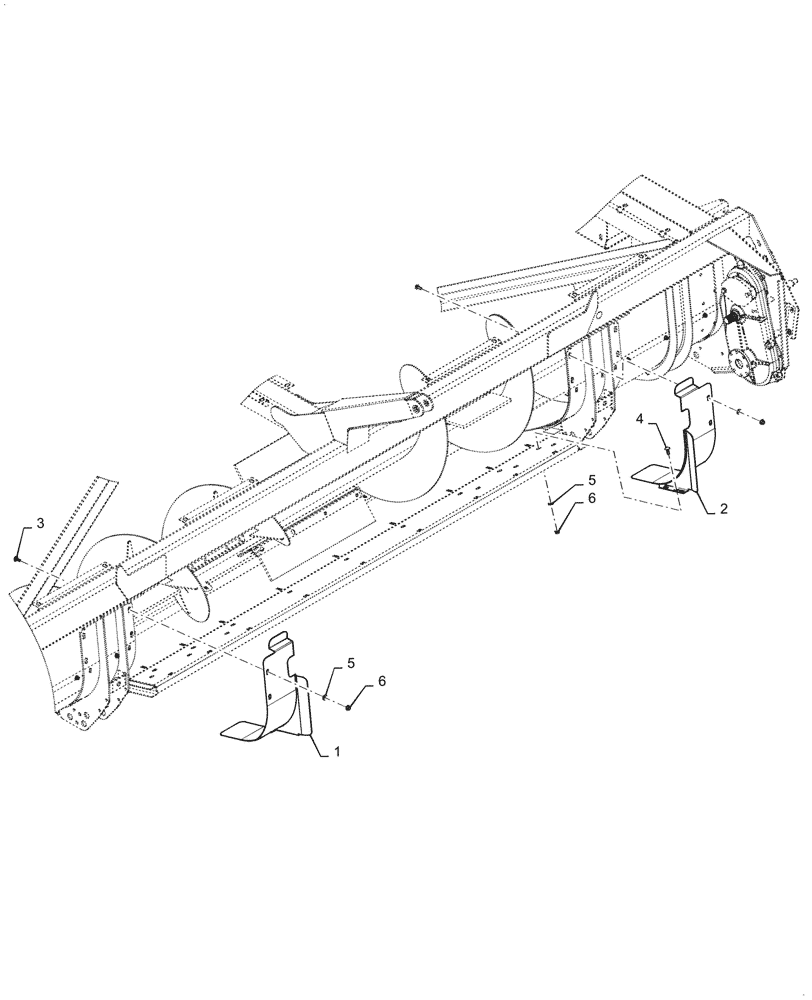

Схема запчастей Case IH RD163 - (39.100.03[03]) - FLOOR, FLAIL CLOSURE (39) - FRAMES AND BALLASTING
3
1
6
4
6
5
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84528589

SUPPORT

LH, Painted Dark Gray

1шт.

2

84528599

SUPPORT

RH, Painted Dark Gray

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

4

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.
