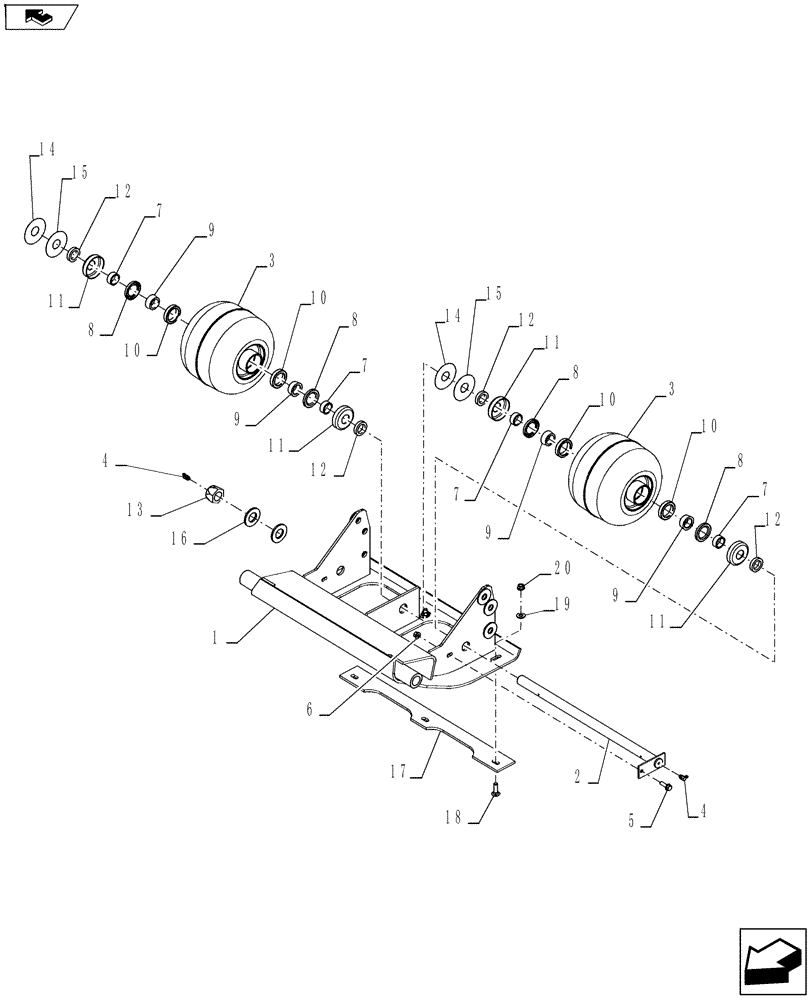

Запчасти Case IH RD163 (39.100.02[02]) - GAUGE WHEELS (39) - FRAMES AND BALLASTING

1

84198353

SHOE

1шт.

2

86554214

AXLE

1шт.

3

762422

ROLLER

2шт.

4

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

5

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

7

704622

SPACER,25.43mm ID x 31.88mm OD x 12.7mm L

4шт.

8

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

4шт.

9

132710

BEARING CONE,25.4mm ID x 14.73mm W

4шт.

10

132709

BEARING CUP,50.29mm OD x 10.67mm W

4шт.

11

612120

COVER

4шт.

12

86629737

SPACER

4шт.

13

280286

NUT,1"-8, GB

1шт.

14

9842039

RING

2шт.

15

9842040

SPACER

2шт.

16

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

17

86578424

SCRAPER TOOL

1шт.

18

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.
