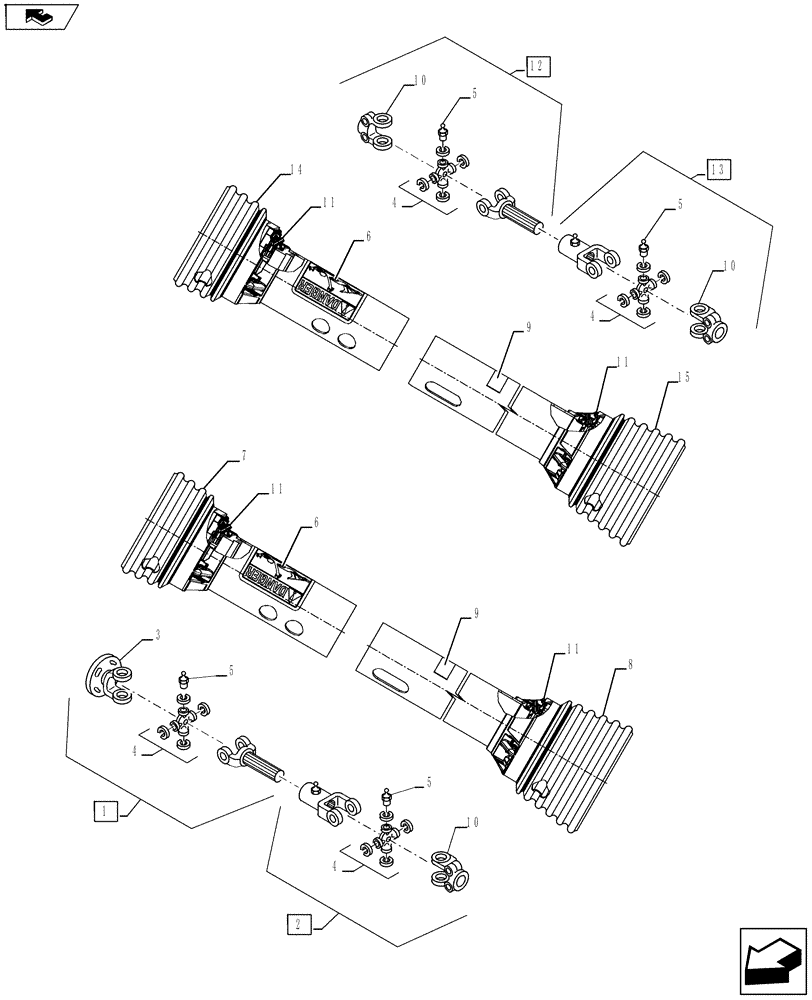

Запчасти Case IH RD163 (31.260.03) - PTO COMPONENTS, GEARBOX DRIVE 16FT (31) - IMPLEMENT POWER TAKE OFF

1

84392668

PTO SHAFT

Shaft Half, Flanged, With Guard, Includes: Ref. 3, 4, 6, 7

1шт.

For Roll Conditioners

1шт.

1

84525023

PTO SHAFT

Half. With Guard, Includes: Ref. 3, 4, 6, 7 & Shaft NSS

1шт.

For Flail Conditioners

1шт.

2

84392669

PTO

Tube Half With Guard, Includes: Ref. 3, 4, 6, 7 & Shaft NSS

1шт.

For Roll Conditioners

1шт.

2

84525028

PTO

Tube Half With Guard

1шт.

For Flail Conditioners

1шт.

3

87024320

YOKE

Flange

1шт.

4

136908

SPIDER

Includes Ref. 5

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

849471

DANGER DECAL

1шт.

7

84392688

GUARD

Outer

1шт.

8

84392689

GUARD

Inner

1шт.

For Roll Conditioner PTO

1шт.

8

84525021

GUARD

Inner

1шт.

For Flail Conditioner PTO

1шт.

9

849472

DANGER DECAL

1шт.

10

84392684

YOKE

1шт.

11

84393030

KIT

Guard Repair, Includes: 1 Bearing and 1 Easy Lock With Instructions

2шт.

Each Kit Repairs Qty. (1) Inner or Outer Guard

1шт.

12

84392671

PTO

Shaft Half With Guard

1шт.

Includes: Ref. 4, 6, 10 & 14

1шт.

13

84392672

PTO

Tube Half With Guard

1шт.

Includes: Ref. 4, 9, 10 & 15

1шт.

14

84392690

GUARD

Outer Guard

1шт.

15

84392691

GUARD

Inner Guard

1шт.
