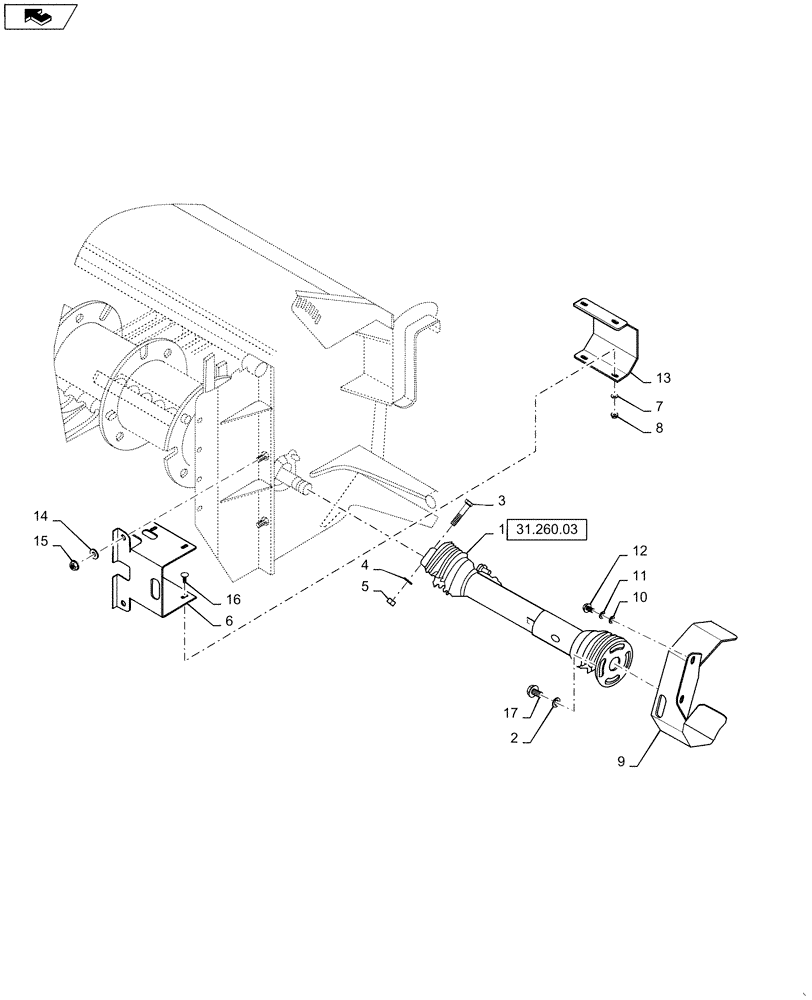

Запчасти Case IH RD163 (31.260.02) - PTO GROUP, 16FT FLAIL (31) - IMPLEMENT POWER TAKE OFF

1

84173944

PTO

PTO Assy., Shielded

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

3

86509453

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

6

84486235

SHIELD

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

9

84485616

SHIELD

1шт.

10

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

13

84530055

SHIELD

1шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

15

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

16

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

17

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.
