Запчасти Case IH RD163 (90.119.04) - SHIELDING, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

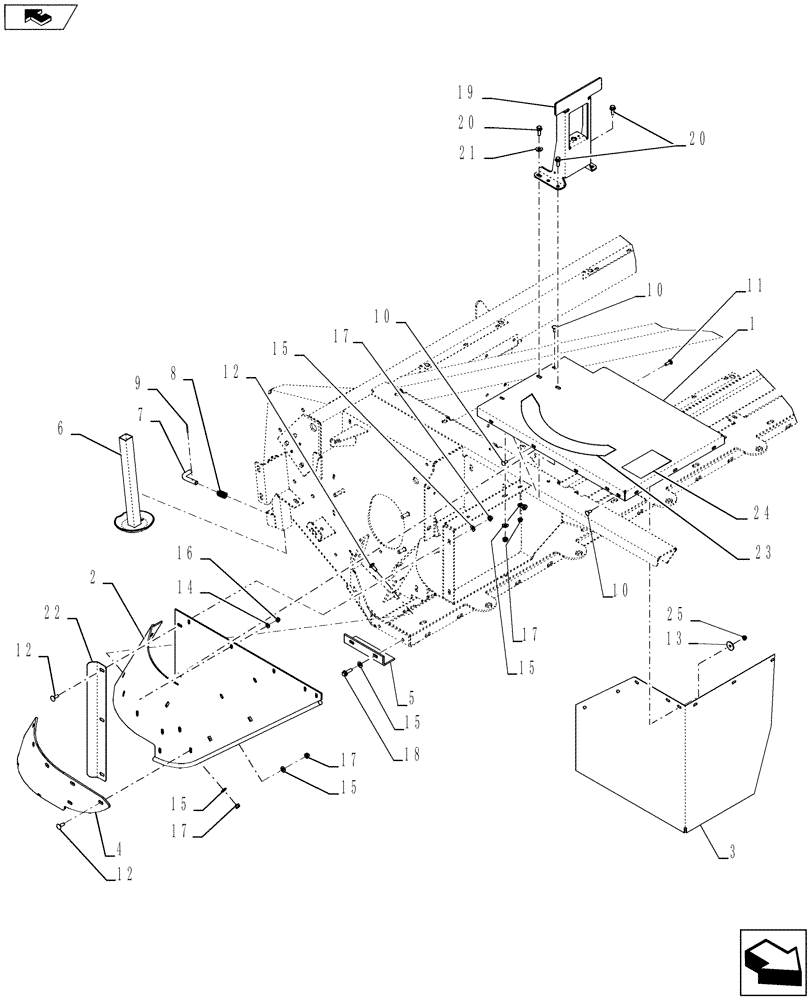

Схема запчастей Case IH RD163 - (90.119.04) - SHIELDING, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
22
12
3
12
6
11
9
24
20
8
10
15
1
17
12
23
18
20
25
4
21
7
17
13
15
15
15
15
10
19
5
home
2
16
17
10
17

Артикул

Название

Примечание

Количество

1

84367216

SHEET

Top, Right Hand. Includes Ref. 23 & 24

1шт.

2

84367209

SHIELD

Cheek, Right Hand

1шт.

3

84194562

SKIRT COVER

1шт.

4

84229862

REINFORCEMENT

Right Hand

1шт.

5

84292458

ANGLE

Angle

1шт.

6

86613561

TUBE

1шт.

7

86611330

PIN,16.56mm OD

1шт.

8

86611329

SPRING

1шт.

9

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

13шт.

11

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

13

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

7шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

5шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

18

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

19

84365491

BRACKET

1шт.

20

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

22

84369250

DEFLECTOR

Right Hand

1шт.

23

80772110

WARNING DECAL

Knife Tip Path

1шт.

24

86624775

WARNING DECAL

Set Machine To Clear Obstructions and Stones.

1шт.

25

145458

SERRATED NUT,5/16"-18 GR 5 ZND

7шт.

Выбрано товаров: 25
