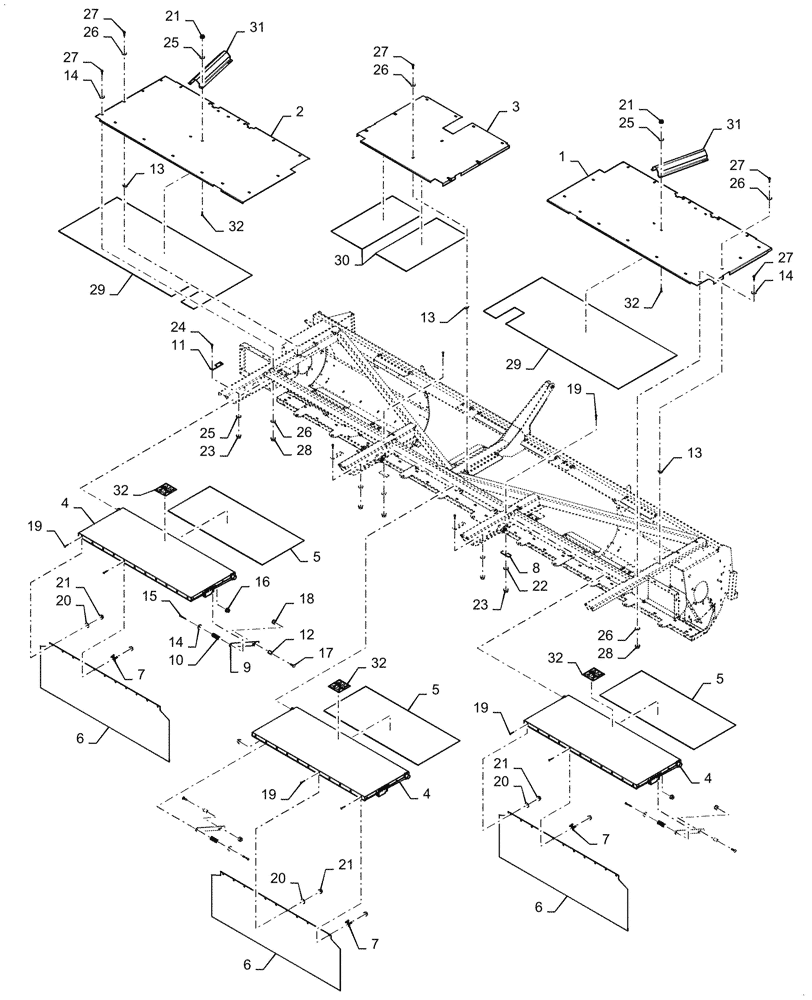

Запчасти Case IH RD163 (90.119.02[02]) - CENTER SHIELD ASSY, ASN YGN260537 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48017016

COVER

LH, Red

1шт.

2

48017018

COVER

RH, Red

1шт.

3

87472818

COVER

Red

1шт.

4

87757779

SKIRT

Hood

1шт.

5

84225178

LINER

Sheet

1шт.

6

84215595

HOOD

Red

2шт.

7

86582726

LINER

Sheet, Plastic

2шт.

8

84226257

CURTAIN

2шт.

9

84226556

LATCH

2шт.

10

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

11

86582727

CLIP

12шт.

12

86539811

SPRING NUT

28шт.

13

84242081

RUBBER PAD

4шт.

14

86622574

SPACER

2шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

16

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

17

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

18

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

19

9636698

NUT,1/2"-13, GB

2шт.

20

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

34шт.

21

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

16шт.

22

145458

SERRATED NUT,5/16"-18 GR 5 ZND

36шт.

23

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

22шт.

24

9823743

FLANGE NUT,Flg, 5/16"-18

14шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30шт.

26

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

30шт.

27

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

28

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

29

47961347

LINER

2шт.

30

47975423

WEAR STRIP

Red

2шт.

31

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

32

47807625

DECAL

Warning, Cluster

2шт.
