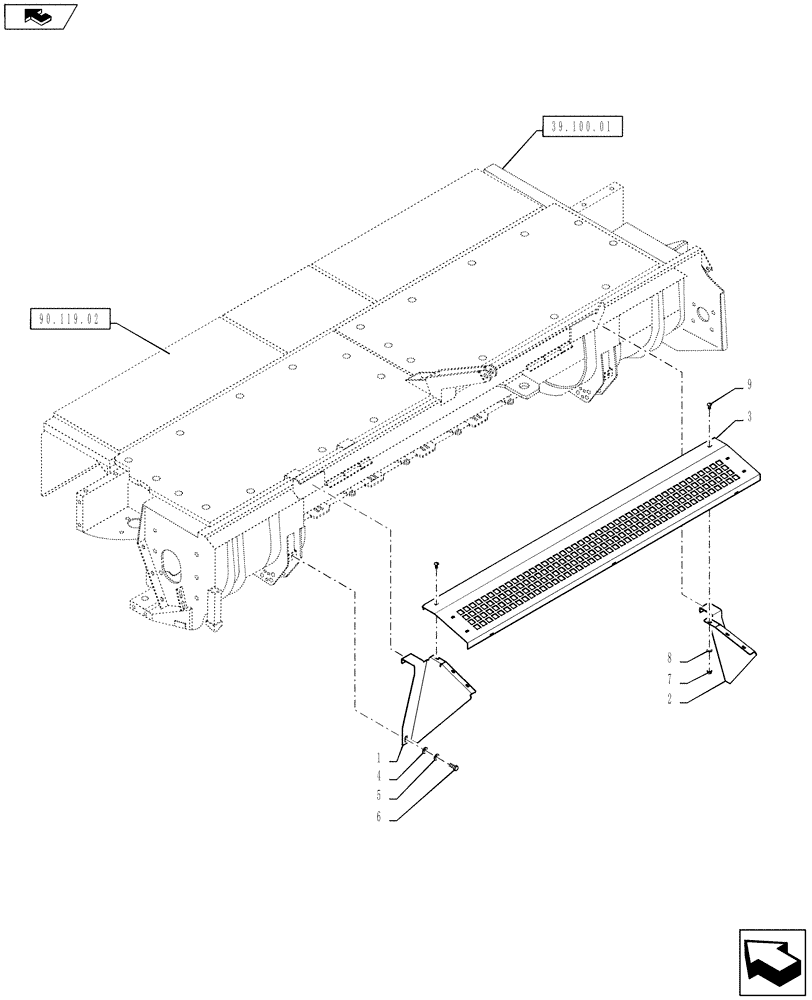

Запчасти Case IH RD163 (90.115.01) - DECK, LESS CONDITIONER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84172025

BRACKET

Left Hand

1шт.

2

84172026

BRACKET

Right Hand

1шт.

3

84132328

SHEET METAL

1шт.

4

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

5

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

6

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.
