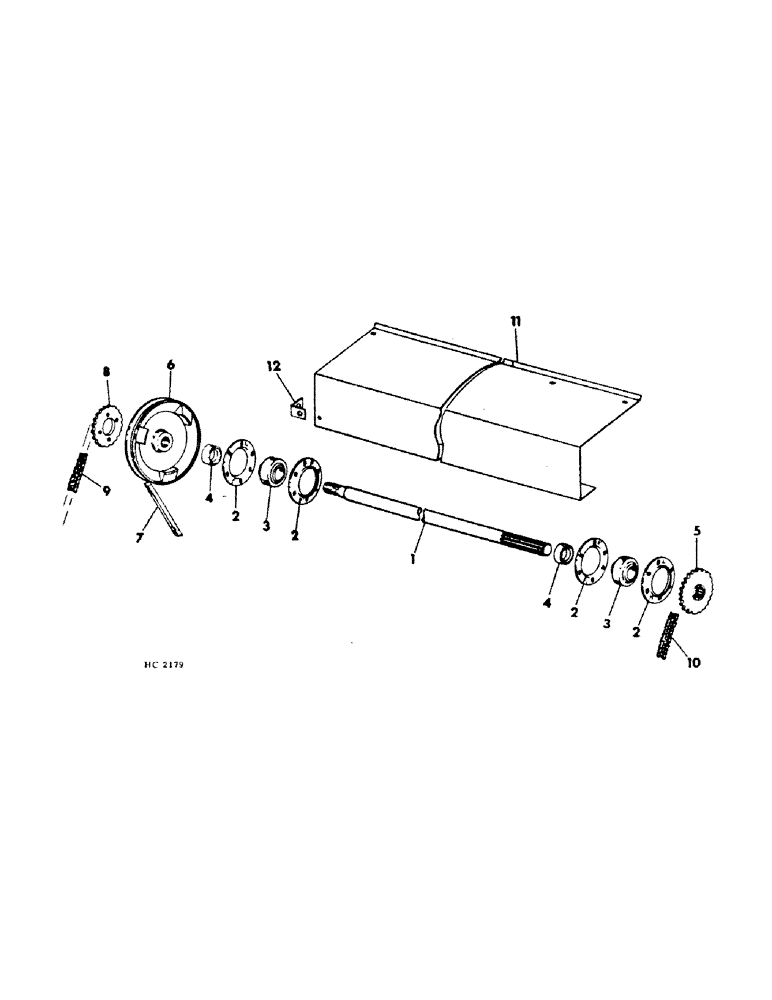

Запчасти Case IH SINGLE (A-05) - SINGLE OVERSHOT AUGER HEADER, HEADER DRIVE

1

828967C2

SHAFT

header drive 12 ft

1шт.

1

828968C2

SHAFT

header drive 14 ft

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

1шт.

21226R1

WASHER

1.281 x 2.000 x .105 (or as required)

4шт.

2

825620C1

RETAINER

drive shaft inner and outer bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

drive shaft

2шт.

4

455104R11

COLLAR

W/SET SCREW, bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex soc cpt set

2шт.

5

828807C1

SPROCKET ASSY.

SPROCKET ASSY, 18T conditioner drive

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, sprocket retain set

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex jam

1шт.

6

828965C1

PULLEY

knife drive

1шт.

7

829413C1

BELT

knife drive, for connecting parts refer to knife drive

1шт.

8

595696R1

SPROCKET ASSY.

SPROCKET, 24T auger drive, regular

1шт.

8

592960R1

SPROCKET ASSY.

SPROCKET, 20T auger drive, slow speed

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

CHAIN ASSY, auger drive for service parts refer to auger drive

1шт.

10

CHAIN ASSY, conditioner drive for service parts refer to conditioner drive

1шт.

11

827997C1

SHIELD

12 ft header driveshaft

1шт.

11

827998C1

SHIELD

14 ft header driveshaft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

829027C1

ANGLE

header driveshaft shield supp

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
