Запчасти Case IH SINGLE (A-04) - SINGLE OVERSHOT AUGER HEADER, HEADER CENTER LINK

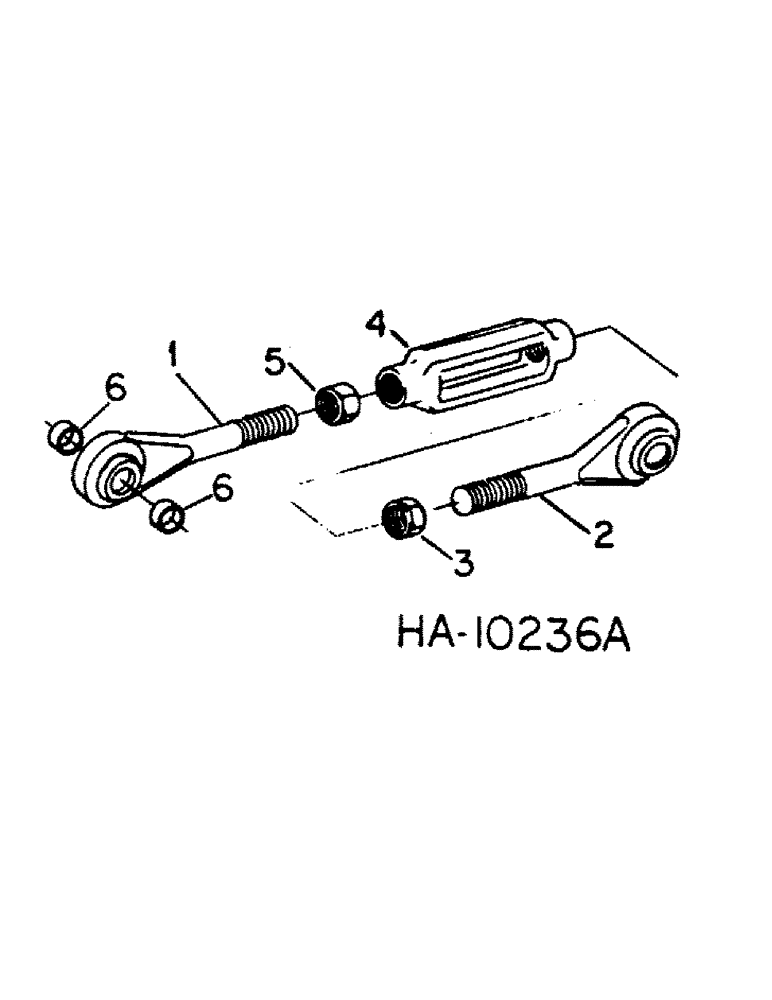

Схема запчастей Case IH SINGLE - (A-04) - SINGLE OVERSHOT AUGER HEADER, HEADER CENTER LINK

Артикул

Название

Примечание

Количество

1

596142R91

LINK

ASSY, header center rear 10.88 inch LH thread

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

4000 & 5000 built 1980 & since Hex, 3/4"-10 x 4 1/2", G8

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1976 to 1980 Hex, 3/4"-10 x 3", G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

596141R91

LINK

ASSY, header center front 10.88 inch RH thread, 4000 & 5000

1шт.

2

829525C1

LINK

ASSY, header center front 13.30 inch RH thread, 275 & 375

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

426898

NUT,Jam, 7/8"-9, G5

7/8-9 hex RH thread

1шт.

4

595992R1

TURNBUCKLE

1шт.

5

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8-9 hex LH thread

1шт.

6

825019C1

BUSHING

link spacer, 4000 & 5000 built 1989 & since

2шт.

Выбрано товаров: 14
