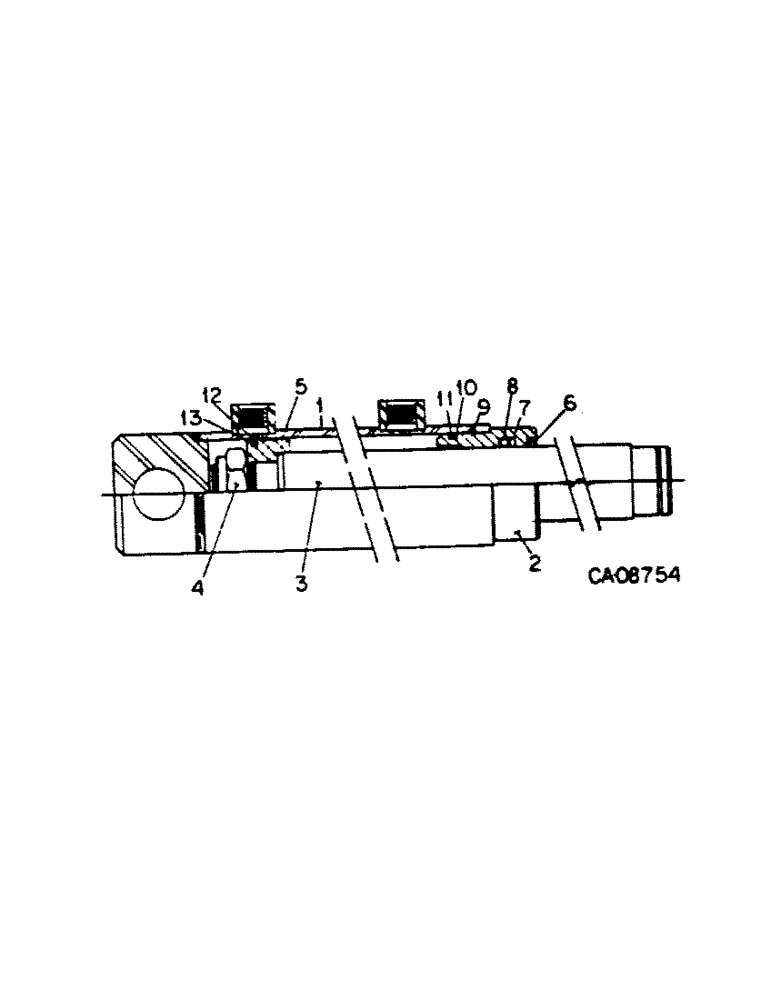

Запчасти Case IH SINGLE (A-39) - SINGLE OVERSHOT AUGER HEADER, CYLINDER, HEADER LIFT MASTER

832104C92

CYLINDER ASSY.

CYLINDER ASSY, header lift master

1шт.

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

825538C1

GLAND,1.62" ID x 1.876" OD x 2"

HEAD, front

1шт.

3

825539C1

ROD

piston

1шт.

4

823323C1

NUT

1-1/8-12 hex lock

1шт.

5

825537C1

PISTON

cylinder

1шт.

6

WIPER, piston rod (NSS)

1шт.

7

WASHER, o-ring back-up (NSS)

1шт.

8

O-RING, 1-1/2 x 1-7/8 (NSS)

1шт.

9

RING, head locking (NSS)

1шт.

10

WASHER, o-ring back-up (NSS)

1шт.

11

O-RING, 1-15/16 x 2-1/8 (NSS)

1шт.

12

RING, slipper (NSS)

1шт.

13

O-RING, 1-13/16 x 2 (NSS)

1шт.

825541C2

SEAL KIT

o-ring and seal service, consists of ref nos 6 thru 13

1шт.

832042C91

CYLINDER

ASSY, header lift slave

1шт.
